| Brand Name: | Winsmart |
| Model Number: | SMTIR288 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |

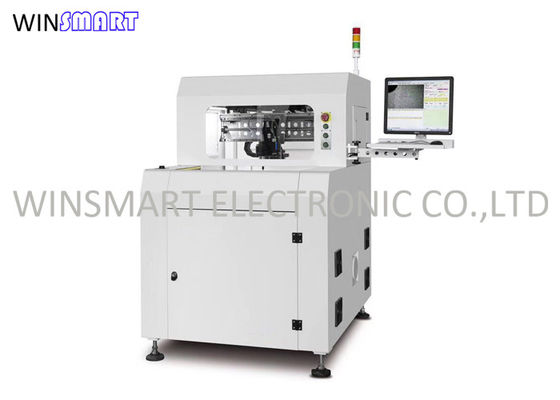

Rotary Table PCB Depaneling Router Machine PCB Router For Electronics Industry
PCB Router Overview:
PCB router, with high speed spindle drying milling kit to cut high density PCBA for both FR4 and Aluminium boards.
PCB Router Specification:
| Model Number | SMTR288 |
| Machine Size | 1000(L) x 1244(W) x 1400(H)mm |
| Voltage | 380V/50Hz, 3.5KW |
| Max PCB Size | 300x400mm |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, left rotation |
| Repeat Accuracy | ±0.02mm |
| Vacuum Cleaner Size | 625(L) x 600(W) x 1160(H)mm |
| Vacuum Cleaner Power | 3HP, 2.2KW |
| Vacuum Cleaner Weight | 130kgs |
| Active Protective Function | Safety light curtain |
| Security Door | Manual door |
| Programming Method | Camera assisted teaching |
PCB Router Features:
1. Full electronic control, no air request
2. High stability, easy maintenance
3. Simple operation, short changeover time
4. Design for small and middle size PCBA
5. Rotary working tables
PCB Router List:
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
PCB Router FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the inline PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
PCB Router Packaging:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTIR288 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Rotary Table PCB Depaneling Router Machine PCB Router For Electronics Industry
PCB Router Overview:
PCB router, with high speed spindle drying milling kit to cut high density PCBA for both FR4 and Aluminium boards.
PCB Router Specification:
| Model Number | SMTR288 |
| Machine Size | 1000(L) x 1244(W) x 1400(H)mm |
| Voltage | 380V/50Hz, 3.5KW |
| Max PCB Size | 300x400mm |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Cutting Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, left rotation |
| Repeat Accuracy | ±0.02mm |
| Vacuum Cleaner Size | 625(L) x 600(W) x 1160(H)mm |
| Vacuum Cleaner Power | 3HP, 2.2KW |
| Vacuum Cleaner Weight | 130kgs |
| Active Protective Function | Safety light curtain |
| Security Door | Manual door |
| Programming Method | Camera assisted teaching |
PCB Router Features:
1. Full electronic control, no air request
2. High stability, easy maintenance
3. Simple operation, short changeover time
4. Design for small and middle size PCBA
5. Rotary working tables
PCB Router List:
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
PCB Router FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the inline PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
PCB Router Packaging:
