| Brand Name: | Winsmart |
| Model Number: | SMTR05 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |

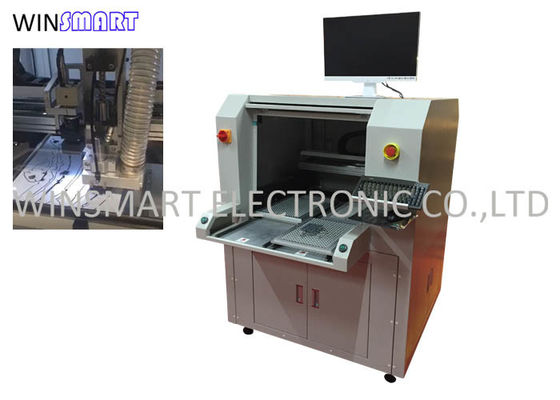

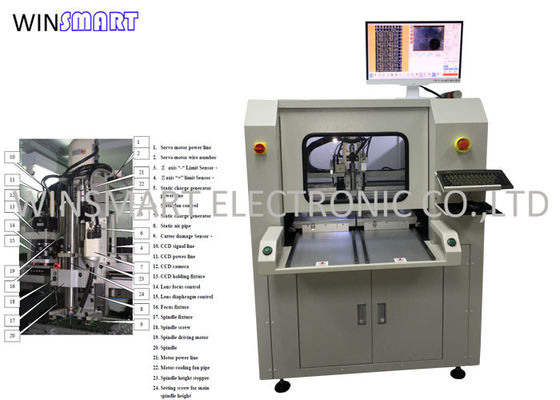

PCB Separator Machine Semi Automatic Router Machine 60000RPM Spindle
PCB Router Features:
High speed cutting is realized by masimizing 4 axes control
Positioning compensation done by image processing, increases the cutting accuracy.
Teaching can be done with PC
Routing bit depth changeover function lengthen router bit life-span.
PCB Router Machine Parameters:
| Router Machine | |
| X/Y Cutting Speed | 0 ~100mm/s |
| Repeatability precision | ± 0.01mm |
| X/Y1/Y2/Z control mode | Industrial IPC and PC |
| X/Y1/Y2/Z driven mode | AC Servo Motor |
| Operation and data storage | PC |
| Cutting Precision | ± 0.05mm |
| Spindle Speed | 60000rpm(Germany KKAVO) |
| Power Supply | 220V/110V |
| Air Pressure | 4.5kg/cm 2 |
| Power Rate | 1.8KW |
| Vacuum Cleaner | |
| Mode | Up or Bottom |
| Power Supply | 380V |
| Up Cleaner Dimension | L650*W400*H1350mm |
| Bottom Cleaner Dimension | L665*W635*H1650mm |
PCB Router Machine Working Area:
| Working Table | Model No. | Description | Working Area | Machine Dimension(mm) | Machine Weight(kgs) |
| Dual | SMTR05 | Standard | 300x350mm | 1382x1056x1500 | 840 |
| Dual | SMTR05 | Larger | 500x500mm | 1682x1356x1500 | 940 |
PCB Router Machine FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
Automatic PCB Router Machine Packaging:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTR05 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
PCB Separator Machine Semi Automatic Router Machine 60000RPM Spindle
PCB Router Features:
High speed cutting is realized by masimizing 4 axes control
Positioning compensation done by image processing, increases the cutting accuracy.
Teaching can be done with PC
Routing bit depth changeover function lengthen router bit life-span.
PCB Router Machine Parameters:
| Router Machine | |
| X/Y Cutting Speed | 0 ~100mm/s |
| Repeatability precision | ± 0.01mm |
| X/Y1/Y2/Z control mode | Industrial IPC and PC |
| X/Y1/Y2/Z driven mode | AC Servo Motor |
| Operation and data storage | PC |
| Cutting Precision | ± 0.05mm |
| Spindle Speed | 60000rpm(Germany KKAVO) |
| Power Supply | 220V/110V |
| Air Pressure | 4.5kg/cm 2 |
| Power Rate | 1.8KW |
| Vacuum Cleaner | |
| Mode | Up or Bottom |
| Power Supply | 380V |
| Up Cleaner Dimension | L650*W400*H1350mm |
| Bottom Cleaner Dimension | L665*W635*H1650mm |
PCB Router Machine Working Area:
| Working Table | Model No. | Description | Working Area | Machine Dimension(mm) | Machine Weight(kgs) |
| Dual | SMTR05 | Standard | 300x350mm | 1382x1056x1500 | 840 |
| Dual | SMTR05 | Larger | 500x500mm | 1682x1356x1500 | 940 |
PCB Router Machine FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
Automatic PCB Router Machine Packaging:
