| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

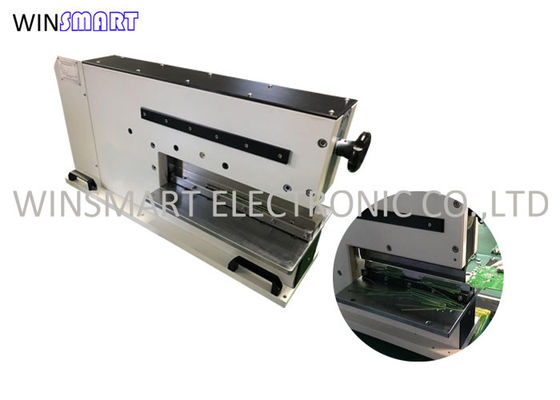

V Cut PCB Depaneling Machine Metal Board Depaneler With 330mm Blades
PCB Depaneling Machine Description:
Equipment designed to minimize board stress and avoid component damage.
Heavy frame for stability, pneumatic cylinder operated.
PCB Depaneling Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 800x300x440mmmm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs |
PCB Depaneling Machine Features:
1. Dual V shape blades for a perfect board cut without bending or tension.
2. Pneumatic footpedal control.
3. Shears boards safely with parts as close 0.02" to score line, including ceramic capacitors.
4. The system only allow correct board placement to avoid mistakes.
PCB Depaneling Machine Spare Parts Available:
Linear blades replacement
Blade resharpening service available.
PCB Depaneling Machine FAQ:
Q: What is life time of blade?
A: 10,000-30,000 cutting times, depends on PCB material.
Q: What is PCB material available?
A: FR1, FR4, CEM1, CEM3, aluminum.
Q: What is max PCB thickness?
A: 5mm.
Q: What is cutting speed?
A: It is controlled by operator, 0-400mm/s.
Q: How many times of blades re-sharpening?
A: 2-3 times.
|
