| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

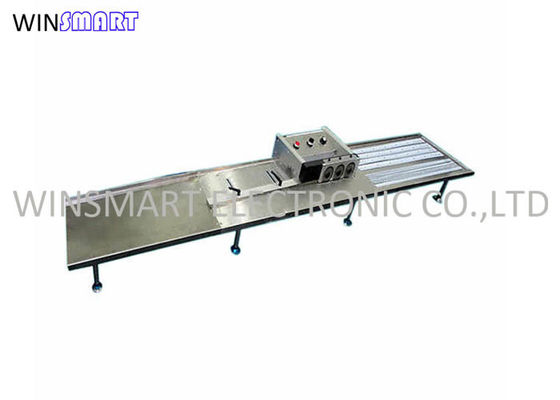

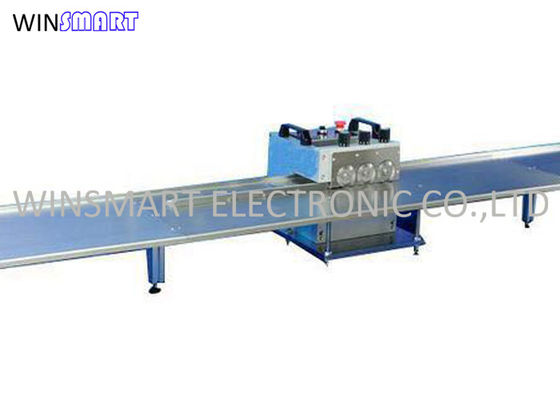

V Cut PCB Depaneling Machine Alumimum PCB Separator Equipment
Equipment designed to minimize board stress and avoid component damage.
Three pairs of precision beveled cutting blades ensure the board does not bend or deform.
The guide can be adjusted vertically to suit different LED boards.
Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.
LED PCB Separator Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 44kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |
LED PCB Separator Features:
1. Easy operation, high cutting speed. First blade set separate 40% of board, second blade set separate 40% of board, third blade set separate the rest 20% to finish depaneling.
2. 3 blade set share cutting stress as a straight line, to make sure lower stress to avoid bending issue.
3. Very good positioning for smooth cutting even if light v-scoring.
4. Blade is made of imported high speed steel which is durable, life time is 6-36 months.
5. Cutting speed is adjustable according to different application.
6. Precision scale for upper blades adjustment, blades are re-sharpened.
LED PCB Separator Application:
LED PCB Separator Package:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
V Cut PCB Depaneling Machine Alumimum PCB Separator Equipment
Equipment designed to minimize board stress and avoid component damage.
Three pairs of precision beveled cutting blades ensure the board does not bend or deform.
The guide can be adjusted vertically to suit different LED boards.
Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.
LED PCB Separator Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 44kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |
LED PCB Separator Features:
1. Easy operation, high cutting speed. First blade set separate 40% of board, second blade set separate 40% of board, third blade set separate the rest 20% to finish depaneling.
2. 3 blade set share cutting stress as a straight line, to make sure lower stress to avoid bending issue.
3. Very good positioning for smooth cutting even if light v-scoring.
4. Blade is made of imported high speed steel which is durable, life time is 6-36 months.
5. Cutting speed is adjustable according to different application.
6. Precision scale for upper blades adjustment, blades are re-sharpened.
LED PCB Separator Application:
LED PCB Separator Package:
