| Brand Name: | Winsmart |
| Model Number: | SMTL600 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

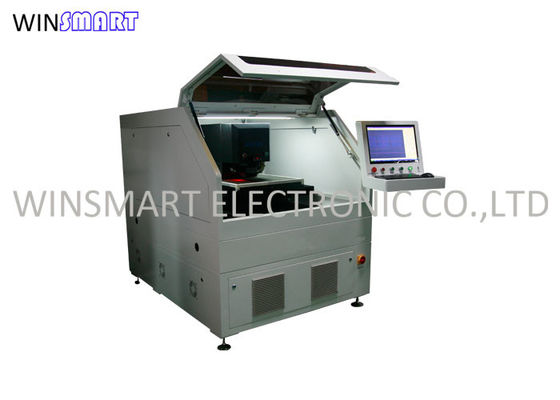

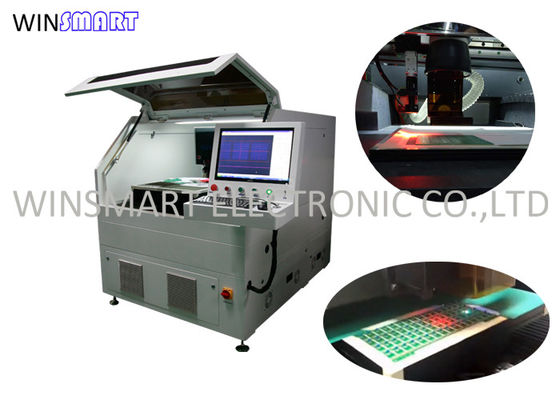

Laser PCB Depaneling Machine 15W UV Laser PCB Cutting Equipment
PCB depaneling and singulation laser system are gaining popularity-especially as circuit board complexity and component ratios continue to rise.
Microelectronics and medical device manufacturers reuire close tolerances and minimal debris-this is where laser technology shines.
Laser PCB Depaneling Machine Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 600mmx600mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
Laser PCB Depaneling Machine Advantages:
1. No mechanical stress
2. Lower tooling costs
3. Higher quality of cuts
4. No consumables
5. Design versatility-simple software changes enable application changes
6. Works with any surface-Teflon, ceramic, aluminum, brass and copper
7. Fiducial recognition achieves precise, clean cuts
Laser PCB Depaneling Machine Application:
FPC and some relative materials.
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Laser PCB Depaneling Machine FAQ:
Q: What kind of PCBs are workable to use this machine?
A: FPC and FR4 panels, covering v score and tab boards.
Q: What is laser head of the machine?
A: We use USA Optowave laser.
Q: What kind of laser source you provide?
A: Green, CO2, UV and picosecond.
Q: What is cutting speed?
A: It depends on PCB material, thickness and cutting effect requirements.
Q: Does it cause dust during cutting?
A: No dust, but smoke, machine comes with exhaust system and water cooler
|
|
