| Brand Name: | Winsmart |
| Model Number: | SMTL300 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

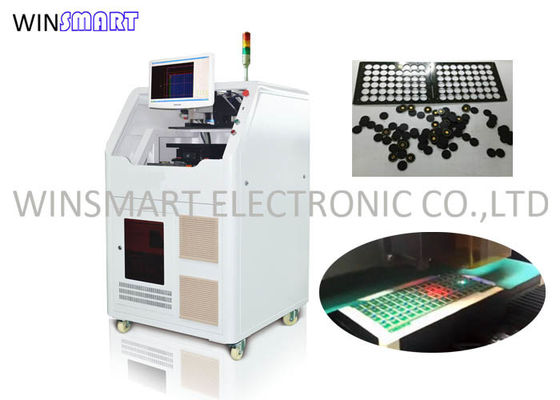

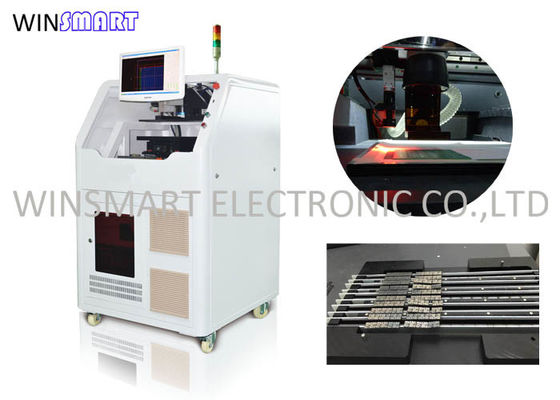

Mini Laser Cutter CNC Cutting Machine Laser Machine for PCB Cutting
Laser Cutter Instroduction:
This PCB Laser Depaneling equipment is integrated with high-stability and the best performance UV laser
generator.
This equipment delivers great working area focus, power distribution ratio and small thermal affection that gives small cutting width and high cutting quality during processing.
With sophisticated two-axis table and closed loop control module, it ensures fast cutting while maintaining micron magnitude of precision with modern technology of position sensors and CCD image capture application.
PCB depaneling and singulation laser systems are gaining popularity—especially as circuit board complexity and component ratios continue to rise. Microelectronics and medical device manufacturers require close tolerances and minimal debris—this is where laser technology shines
Laser Cutter Advantages:
1. No mechanical stress
2. Lower tooling costs
3. Higher quality of cuts
4. No consumables
5. Design versatility—simple software changes enable application changes
6. Works with any surface—Teflon, ceramic, aluminum, brass and copper
Laser Cutter Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 300mmx300mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
Laser Cutter Cutting Result:
Laser Cutter Applications:
Depaneling flex and rigid PCBs
Cover layer cutting
Cutting fired and unfired ceramics
|
|
