| Brand Name: | Winsmart |
| Model Number: | SMTL460 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

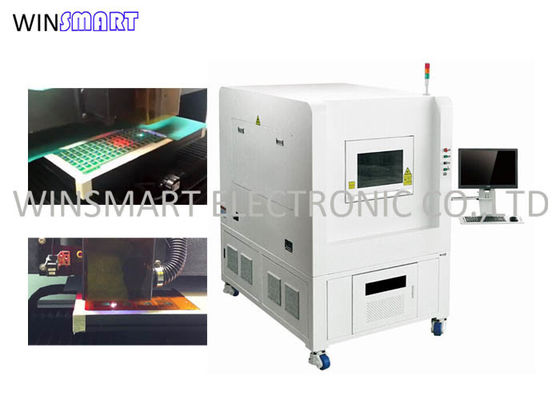

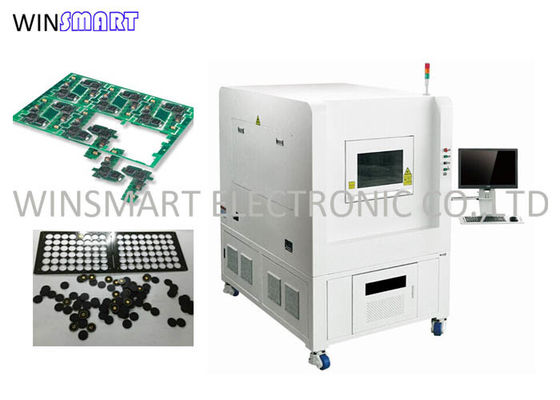

PCB Laser Cutting Machine PCB Depaneling Equipment Without Cutting Stress
Overcoming Traditional Methods:
Laser depaneling systems overcome these challenges while offering greater precision, speed and accuracy. Unlike traditional depaneling techniques, they eliminate mechanical stress to the PCB—resulting in higher throughput.
Clean and Precise Cutting:
Lasers make clean, burr-free and precise cuts against the edge of circuits and other important components—improving overall design flexibility without damaging the substrate. Because you don’t have to reorder parts or sharpen bits and blade, laser systems are also more cost effective.
PCB Laser Cutting Machine Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmx460mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
PCB Laser Cutting Machine Working Principle:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTL460 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PCB Laser Cutting Machine PCB Depaneling Equipment Without Cutting Stress
Overcoming Traditional Methods:
Laser depaneling systems overcome these challenges while offering greater precision, speed and accuracy. Unlike traditional depaneling techniques, they eliminate mechanical stress to the PCB—resulting in higher throughput.
Clean and Precise Cutting:
Lasers make clean, burr-free and precise cuts against the edge of circuits and other important components—improving overall design flexibility without damaging the substrate. Because you don’t have to reorder parts or sharpen bits and blade, laser systems are also more cost effective.
PCB Laser Cutting Machine Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmx460mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
PCB Laser Cutting Machine Working Principle:
