| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
V Cut Groove PCB Separator Depaneling Machine for FR4 / Aluminum Boards
Advantages:
1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5. Blades can be re-sharpened
6. Cutting stress is less than 500 uE.
Principle:
It uses two linear blades to separate boards with less stress, like a scissor.
And operator cannot mis-feed boards.
It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.
Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs |

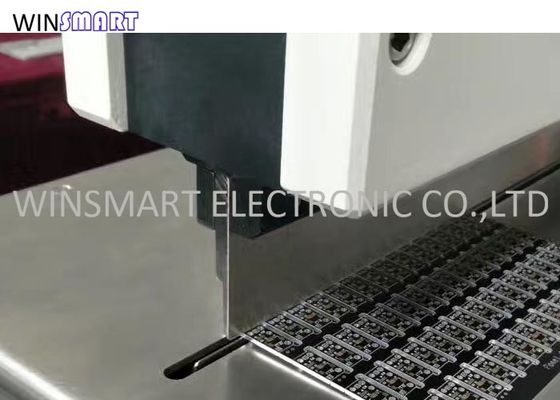

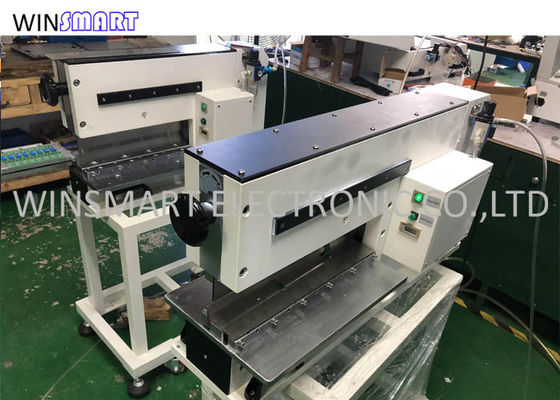

Machine Display:
Working in Customer's Workshop:
|
|
