| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

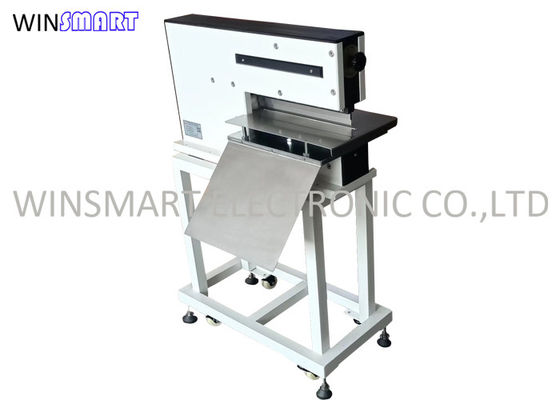

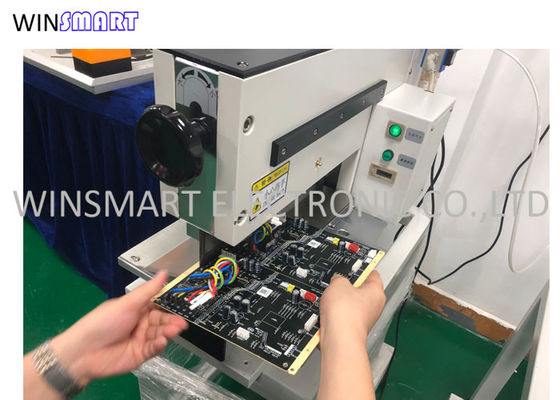

Pneumatic PCB Depanelizer Machine PCB Assembly Machine Air Driven
PCB Depanelizer Machine Overview:
It is widely used in modern PCB industry.
We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting
and laser cutting solutions.
PCB Depanelizer Machine Advantages:
1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5. Blades can be re-sharpened
6. Cutting stress is less than 500 uE.
PCB Depanelizer Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs |
PCB Depanelizer Machine Details:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
FAQ:
Q: What is life time of blade?
A: 100,000-300,000 cutting times, depends on PCB material.
Q: What is PCB Material available?
A: FR1, FR4, CEM, MCPCB.
Q: What is PCB thickness?
A: 0.4-3.5mm
Q: What is cutting speed?
A: It is adjustable, 0-400mm/s.
|
|
