| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

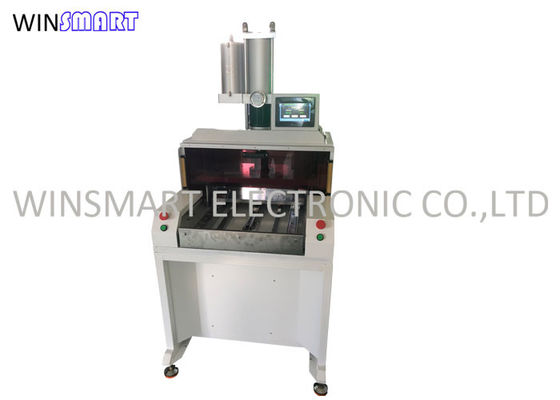

Aluminum PCB Punching Machine Hydraulic Punching Mold Less Noise
PCB Punching Machine Features:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
PCB Punching Machine Specification:
| Working area | 400*300mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 580kgs |

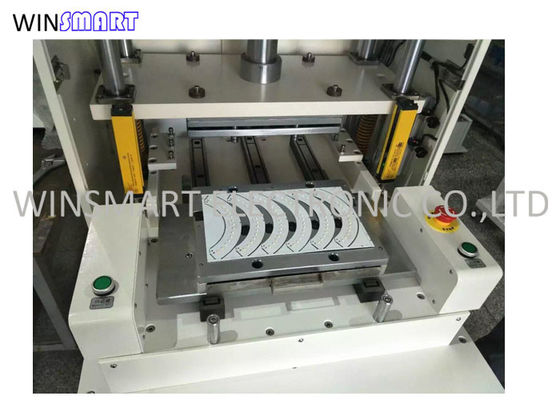

PCB Punching Machine Details:
PCB Punching Machine Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Lock the wooden case
|
|
| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Aluminum PCB Punching Machine Hydraulic Punching Mold Less Noise
PCB Punching Machine Features:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
PCB Punching Machine Specification:
| Working area | 400*300mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 580kgs |
PCB Punching Machine Details:
PCB Punching Machine Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Lock the wooden case
