| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

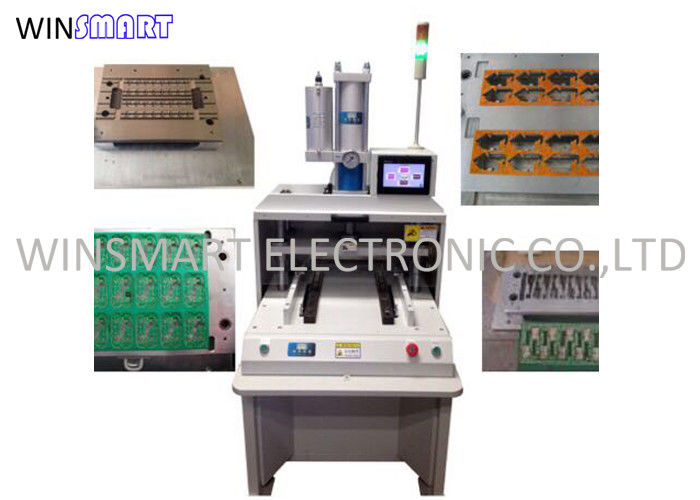

PCBA Die Tooling PCB Punching Machine PCB / FPC Punching Tool
Our Advantages:
Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.
Features:
Double switch start operation.
Device configuration mode and out of the chute,and out of the lower mold automatic pick and place convenient and safe products.
Emergency stop switch,identify problems and timely shutdown.
Security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
Safety pressure setting function,limit alarm.Automatic counting,limit down time.
The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
Suitable for high volume routed boards.
Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 580kgs |
Details:
Shipment:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
|
