| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
FR4 PCB Punching Machine PCB Punching Mold For PCB Depanelization
Function:
It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market.
Its minimum cutting precision is ±0.05mm for special slim PCBs. Max working area is 460*320mm.
PCB Punching Machine Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
PCB Punching Machine Features:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven

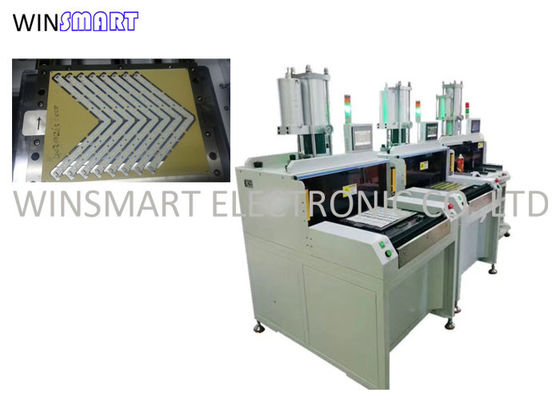

PCB Punching Machine Details:
PCB Punching Machine Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make die tooling and test it with the punching machine.
|
