| Brand Name: | Winsmart |
| Model Number: | SMTAD10 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

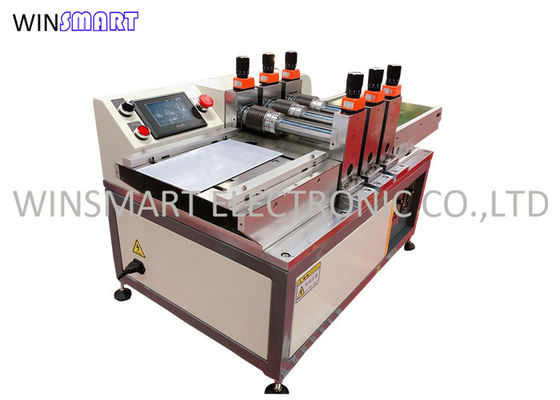

Automatic LED Strip Cutting Machine Multi-Blade PCB Cutter Machine
Features:
1. It can cut many boards with multiple sets of knives work at the same time..
2. The knife distance can be adjustable by spacer.
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 5mm-100mm.
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long life time.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.3-3.0mm

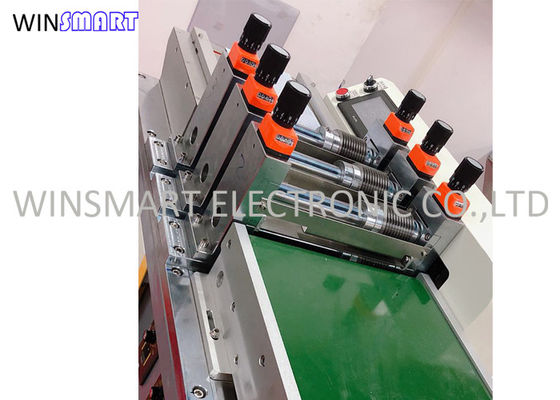

8. The machine adopts 3 blade sets to separate boards with simple operation and high efficiency to avoid bending issue.
Specification:
| Model | SMTAD3 |
| Max cutting length | No limit |
| Min cutting length | 200mm |
| Max panel width | 250mm |
| Custom cutting width | 300mm |
| Min PCB width | 5mm |
| PCB thickness | 0.3-3.0mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| Dimension | 610x370x400mm |
| Packaging weight | 80kgs |
Multi-blade PCB Application:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTAD10 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Automatic LED Strip Cutting Machine Multi-Blade PCB Cutter Machine
Features:
1. It can cut many boards with multiple sets of knives work at the same time..
2. The knife distance can be adjustable by spacer.
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 5mm-100mm.
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long life time.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.3-3.0mm
8. The machine adopts 3 blade sets to separate boards with simple operation and high efficiency to avoid bending issue.
Specification:
| Model | SMTAD3 |
| Max cutting length | No limit |
| Min cutting length | 200mm |
| Max panel width | 250mm |
| Custom cutting width | 300mm |
| Min PCB width | 5mm |
| PCB thickness | 0.3-3.0mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| Dimension | 610x370x400mm |
| Packaging weight | 80kgs |
Multi-blade PCB Application:
