| Brand Name: | Winsmart |
| Model Number: | SMTD1 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

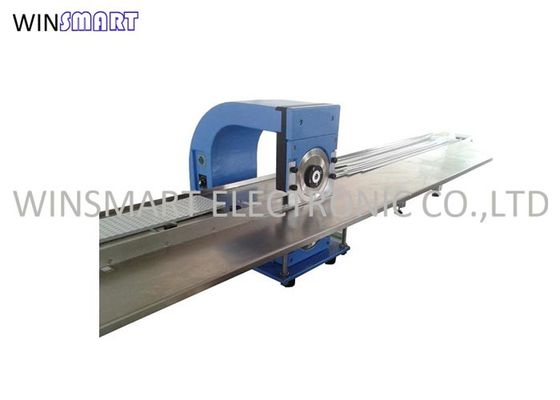

Motorized LED Strip Cutting Machine PCB Separator For PCB Assembly
LED PCB Separator Features:
1. Easy operation, high cutting speed.
2. The upper knife distance can be precisely adjusted to solve the V-cut problem, and the stress generated by the cutting plate is reduced to avoid tin cracking.
3. Upper and lower round knives can be adjusted precisely, suitable for led strip panels.
4. Blade is made of imported high speed steel which is durable.
5. Cutting speed is adjustable according to different application.
6. Blades are re-sharpened.
LED PCB Separator Specification:
| Model | SMTD1 |
| Machine Dimension | 280x420x400mm |
| Platform Dimension | 2400x500x400mm |
| Max Cutting Length | No limit |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-400mm/s |
| PCB Thickness | 0.8-3mm |
| Power | 220/110V |
| Machine Weight | 43kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |

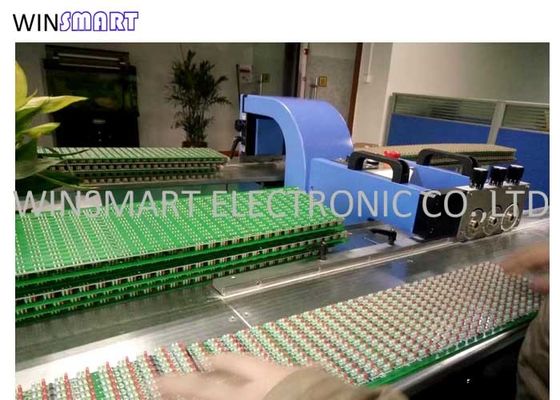

LED PCB Separator Used in Customers' Workshop:
FAQ:
Q: What is life time of blade?
A: 100,000-300,000 cutting times, depends on PCB material.
Q: What is PCB Material available?
A: FR1, FR4, CEM, MCPCB.
Q: What is PCB thickness?
A: 0.4-3.5mm
Q: What is cutting speed?
A: It is adjustable, 0-400mm/s.
|
|
