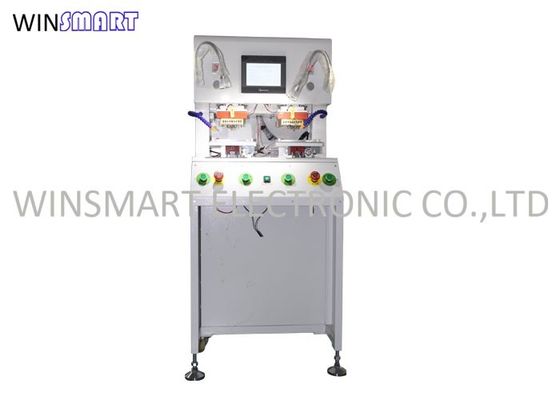

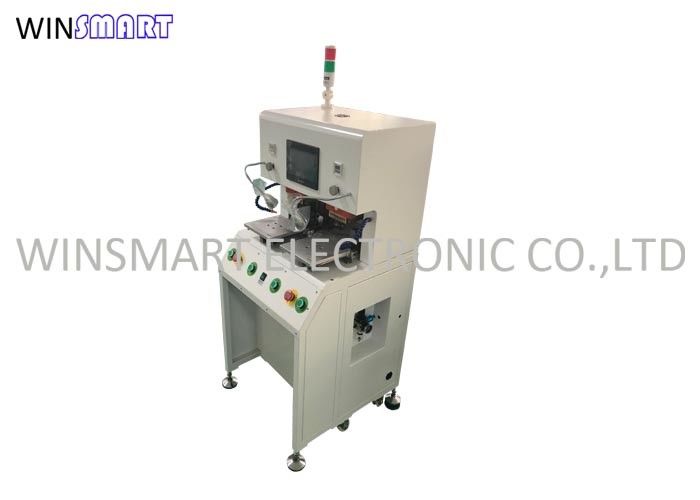

Molybdenum Alloy Thermode Dual Tables Hot Bar Soldering Machine

PCB Hot Bar Soldering Machine Description:

A Hot Bar Soldering Machine is a specialized piece of equipment used in electronics manufacturing for precise soldering of components onto printed circuit boards (PCBs) or flexible circuits using a heated thermode (hot bar).

PCB Hot Bar Soldering Machine Principles:

Pulse heat unit is intended to solder electric components.
It consists of a reflow head which holds down the object and applies pressure force and the pulse heat power supply which applies the current.

Pulse heating is an instantaneous heating method. Heating is performed only when the solder is desired to be melted.
Electric current is applied to the iron to generate heat by resistance and the solder is melted. When the solder has melted, the current will be stopped and the solder is cooled. And when the solder has hardened, the heater tip is raised.

Because the pressure is kept applied until the solder is hardened, highly reliable joining without lifting up can be achieved.

PCB Hot Bar Soldering Machine Features:

1. According to different products, optional temperature for your choice.

2. Unique material thermode head, ensure the average pressure

3. Has vacuum function, easier for adjustment and positioning.

4. NC temperature, clear and high precision

5. With digital pressure gauge, pressure range can be preset.

6. Microcomputer control, high accuracy and stable.

7. Programmable curve Including pre-heating and reflow soldering temperature.

8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.

9. Precise PID control, phase angle replace pulse drive.

10. Less Libration, less noise, avoiding voltage fluctuate

11. Rotable dual fixtures with high working efficiency

12. Touch screen input data, simplify the operation.

13. Real-time display temperature curve and temperature data

PCB Hot Bar Soldering Machine Specification:

Hot Bar Soldering Machine Applications:

For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB

Our Advantages:

Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.

Delivery Terms:

1. Ex-work/FOB/CIF/DDU, up to clients

2. Production leadtime: 7-15 days to customized make fixtures/jigs and test it with the punching machine.
