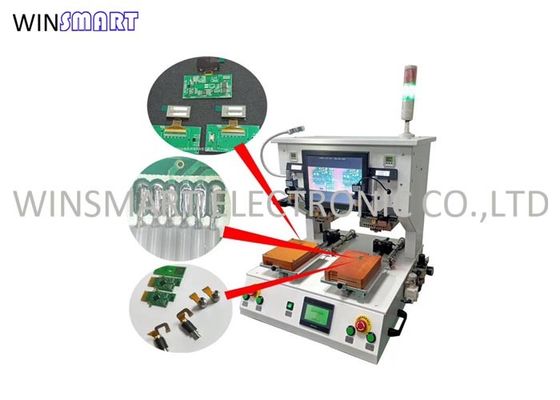

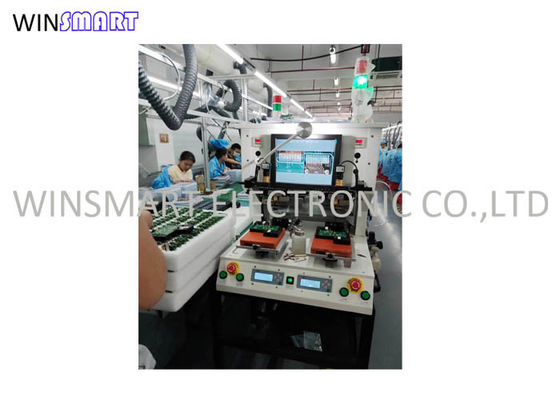

Hot Bar Soldering Equipment Manufacturers Molybdenum Alloy Thermode
Hot Bar Soldering Machine Introduction:
Our hot bar bonding and soldering machines, easy to use, robust and economical for bonding flex to rigid assemnlies such as flex to PCB, LCD-Flex to PCB, Flex to LCD, HSC to LCD, HSC to PCB, Wires to PCB.
Working Principle:
A 2000W transformer is used to generate a large current with low voltage, which is heated rapidly through the welding joint. Pulse current refers to the on and off frequency ratio of current. The larger the pulse ratio is, the larger the current output is, and the faster the welding joint temperature rises.
Control Principle:
First, input the appropriate temperature parameters and upload them to the high-performance microcontroller. Then in the production process, the temperature sensing line on the welding joint feeds back the temperature, and samples dozens of times per second to control the current pulse ratio to achieve constant temperature accuracy.
Thermode Head Description:
Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
The level of soldering head is adjustable , to ensure uniformpart assembly processing
Digital display to control temperature,easyand clear
With digital pressure meter, can be preset pressure range
Special welding materials
It is equipped with precise PID control, phase Angle instead of pulse drive.
Little vibration, low noise, no voltage fluctuation
Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting
Specification:
| Machine size | 680×780×750mm |
| Working area | Max 200*260mm |
| Machine weight | 135Kg |
| Working air pressure | 0.4-0.6Mpa |
| Jig quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Applications:
LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.
All where there need to be heated or fusing or joining or forming.
Shipping Ways:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS42 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Hot Bar Soldering Equipment Manufacturers Molybdenum Alloy Thermode
Hot Bar Soldering Machine Introduction:
Our hot bar bonding and soldering machines, easy to use, robust and economical for bonding flex to rigid assemnlies such as flex to PCB, LCD-Flex to PCB, Flex to LCD, HSC to LCD, HSC to PCB, Wires to PCB.
Working Principle:
A 2000W transformer is used to generate a large current with low voltage, which is heated rapidly through the welding joint. Pulse current refers to the on and off frequency ratio of current. The larger the pulse ratio is, the larger the current output is, and the faster the welding joint temperature rises.
Control Principle:
First, input the appropriate temperature parameters and upload them to the high-performance microcontroller. Then in the production process, the temperature sensing line on the welding joint feeds back the temperature, and samples dozens of times per second to control the current pulse ratio to achieve constant temperature accuracy.
Thermode Head Description:
Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
The level of soldering head is adjustable , to ensure uniformpart assembly processing
Digital display to control temperature,easyand clear
With digital pressure meter, can be preset pressure range
Special welding materials
It is equipped with precise PID control, phase Angle instead of pulse drive.
Little vibration, low noise, no voltage fluctuation
Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting
Specification:
| Machine size | 680×780×750mm |
| Working area | Max 200*260mm |
| Machine weight | 135Kg |
| Working air pressure | 0.4-0.6Mpa |
| Jig quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Applications:
LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.
All where there need to be heated or fusing or joining or forming.
Shipping Ways:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
