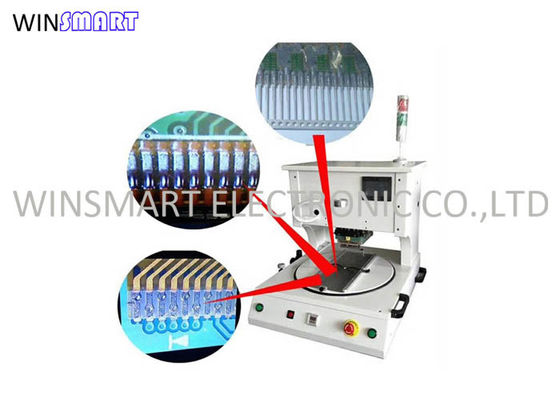

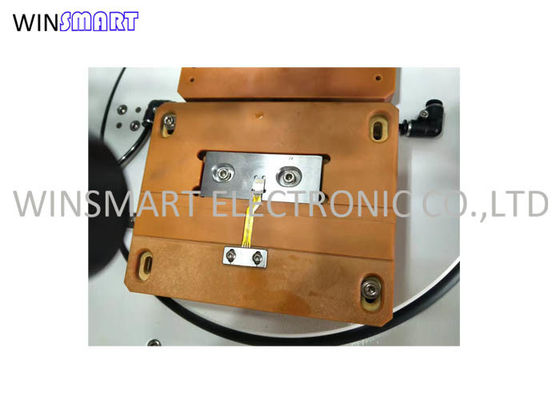

PCB Soldering Machine SMD LED Soldering Machine For SMT Assembly
Working Principle:
A 2000W transformer is used to generate a large current with low voltage, which is heated rapidly through the welding joint. Pulse current refers to the on and off frequency ratio of current. The larger the pulse ratio is, the larger the current output is, and the faster the welding joint temperature rises.
Features:
• The heating rate is customized to meet different products.
• Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
• The level of soldering head is adjustable, to
• Digital display to control temperature, easy and clear.
• With digital pressure meter, can be preset pressure range.
• Special welding materials.
• It is equipped with precise PID control, phase Angle instead of pulse drive.
• Little vibration, low noise, no voltage fluctuation.
• Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting.
Configuration:
Under pressure cylinder : SMC
Pressure display table : Analog
Magnetic cylinder sensor switch : SMC
Solenoid valve : made in Taiwan
Connectors and trachea : made in Taiwan
Filter regulator : made in Taiwan
Precision cylinder under pressure regulator : SMC
Control system: independent research and development ( Chinese )
Power transformer : 220V, 2000W
Driver module : 45A
Vacuum Generators : SMC
Button switch: Schneider
Relay: Omron
Chassis components: aluminum plus bending parts
Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Heat Bonding Paratmeter:
| Temperature range | 50℃ to 500℃ |
| Temperature accuracy | ±1°C |
| Bond timer | 0-12 seconds |
| Bond air pressure | 0.4-0.6MPa |
| Pressure accuracy | ±0.05MPa |
| Max bond force | 1100N |
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make fixtures/jigs and test it with the punching machine.
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTS32 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PCB Soldering Machine SMD LED Soldering Machine For SMT Assembly
Working Principle:
A 2000W transformer is used to generate a large current with low voltage, which is heated rapidly through the welding joint. Pulse current refers to the on and off frequency ratio of current. The larger the pulse ratio is, the larger the current output is, and the faster the welding joint temperature rises.
Features:
• The heating rate is customized to meet different products.
• Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
• The level of soldering head is adjustable, to
• Digital display to control temperature, easy and clear.
• With digital pressure meter, can be preset pressure range.
• Special welding materials.
• It is equipped with precise PID control, phase Angle instead of pulse drive.
• Little vibration, low noise, no voltage fluctuation.
• Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting.
Configuration:
Under pressure cylinder : SMC
Pressure display table : Analog
Magnetic cylinder sensor switch : SMC
Solenoid valve : made in Taiwan
Connectors and trachea : made in Taiwan
Filter regulator : made in Taiwan
Precision cylinder under pressure regulator : SMC
Control system: independent research and development ( Chinese )
Power transformer : 220V, 2000W
Driver module : 45A
Vacuum Generators : SMC
Button switch: Schneider
Relay: Omron
Chassis components: aluminum plus bending parts
Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Heat Bonding Paratmeter:
| Temperature range | 50℃ to 500℃ |
| Temperature accuracy | ±1°C |
| Bond timer | 0-12 seconds |
| Bond air pressure | 0.4-0.6MPa |
| Pressure accuracy | ±0.05MPa |
| Max bond force | 1100N |
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make fixtures/jigs and test it with the punching machine.
