| Brand Name: | Winsmart |
| Model Number: | SMTR-330 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

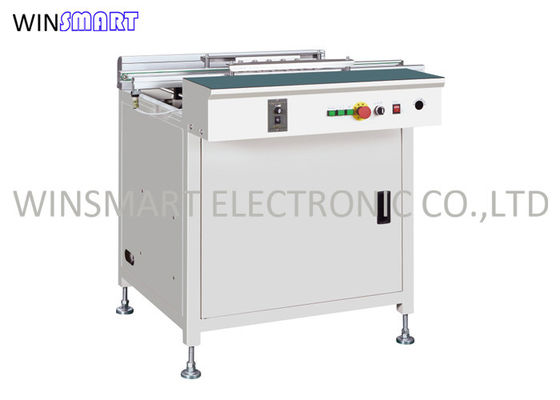

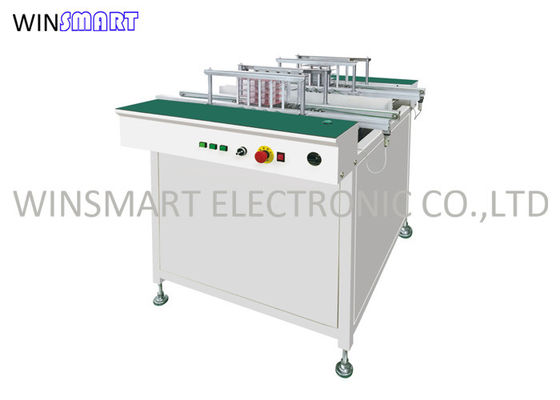

PCB Handling System SMT Reject Conveyor For SMT Production Line
Product Description
1. Sheet metal welded framework, powder coating on surface
2. Stability enhanced by robust design
3. Reject, detect and pass, three optional modes
4. Smooth and parallel width adjustment
5. Multi-zone concept available upon request
6. A perfect match between AOI and SPI
7. SMEMA compatible
Specifications:
| Model No | SMTR-330 | SMTR-460 | SMTR-250D |
| PCB Size(mm) | (50x50)-(460x330) | (50x50)-(530x390) | (50x50)-(350x250) |
| Machine Size(mm) | 1000x890x1000 | 1000x1100x1000 | 1000x1600x1000 |
| Weight(kg) | 100 | 120 | 140 |
Technical Parameters:
| Function | Power Supply | Conveyor belt type |
| This machine is used to store NG and OK boards after inspection machine(SPI/AOI) and pass a OK board to next process. NG board will go to the cupper conveyor for visual checking. | 100-240AV, 1ph | Round belt |
| Transport height | Transport Direction | PCB Thickness |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm |
Details:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTR-330 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PCB Handling System SMT Reject Conveyor For SMT Production Line
Product Description
1. Sheet metal welded framework, powder coating on surface
2. Stability enhanced by robust design
3. Reject, detect and pass, three optional modes
4. Smooth and parallel width adjustment
5. Multi-zone concept available upon request
6. A perfect match between AOI and SPI
7. SMEMA compatible
Specifications:
| Model No | SMTR-330 | SMTR-460 | SMTR-250D |
| PCB Size(mm) | (50x50)-(460x330) | (50x50)-(530x390) | (50x50)-(350x250) |
| Machine Size(mm) | 1000x890x1000 | 1000x1100x1000 | 1000x1600x1000 |
| Weight(kg) | 100 | 120 | 140 |
Technical Parameters:
| Function | Power Supply | Conveyor belt type |
| This machine is used to store NG and OK boards after inspection machine(SPI/AOI) and pass a OK board to next process. NG board will go to the cupper conveyor for visual checking. | 100-240AV, 1ph | Round belt |
| Transport height | Transport Direction | PCB Thickness |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm |
Details:
