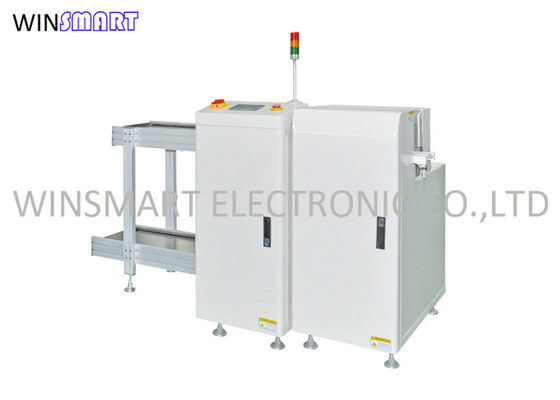

Fully Automatic PCB Vacuum Loader Bare Board Loader Suction Loader
Product Description
PLC control system, working is stable and reliable
Touch screen panel, operation is easy
The pneumatic clamps of top and bottom three points for magazine alignment
Effective thrust design can ensure PCB is unbroken
Flexible suction cup design, its position is adjustable
Machine always fault monitoring
SMEMA compatible
Specifications:
| Model No | SMTSL-250 | SMTSL-330 | SMTSL-390 | SMTSL-460 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(455x330) | (50x50)-(530x390) | (50x50)-(530x460) |
| Machine Size(mm) | 1900x850x1300 | 2250x1050x1300 | 2600x1250x1300 | 2600x1480x1300 |
| Magazine Size(mm) | 355x320x560mm | 460x400x563 | 535x460x570 | 535x530x570 |
| Weight(kg) | 220 | 250 | 280 | 320 |
Technical Parameters:
| Function | PCB Loading Time | Magazine Change Time | Power Supply | Air Pressure |
| It is used for line source, suction pcb is optional for blank PCB, loading PCB function is optional for nonblank PCB | Approx 6 seconds | Approx 30 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | PCB Thickness | Magazine Number | Step Pitch Select |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | Up: 1; Down: 2 | 10mm, 20mm, 30mm, 40mm |
PCB Transmission:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTSL-330 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Fully Automatic PCB Vacuum Loader Bare Board Loader Suction Loader
Product Description
PLC control system, working is stable and reliable
Touch screen panel, operation is easy
The pneumatic clamps of top and bottom three points for magazine alignment
Effective thrust design can ensure PCB is unbroken
Flexible suction cup design, its position is adjustable
Machine always fault monitoring
SMEMA compatible
Specifications:
| Model No | SMTSL-250 | SMTSL-330 | SMTSL-390 | SMTSL-460 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(455x330) | (50x50)-(530x390) | (50x50)-(530x460) |
| Machine Size(mm) | 1900x850x1300 | 2250x1050x1300 | 2600x1250x1300 | 2600x1480x1300 |
| Magazine Size(mm) | 355x320x560mm | 460x400x563 | 535x460x570 | 535x530x570 |
| Weight(kg) | 220 | 250 | 280 | 320 |
Technical Parameters:
| Function | PCB Loading Time | Magazine Change Time | Power Supply | Air Pressure |
| It is used for line source, suction pcb is optional for blank PCB, loading PCB function is optional for nonblank PCB | Approx 6 seconds | Approx 30 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | PCB Thickness | Magazine Number | Step Pitch Select |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | Up: 1; Down: 2 | 10mm, 20mm, 30mm, 40mm |
PCB Transmission:
