| Brand Name: | Winsmart |
| Model Number: | SMTBC100-350C |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PCB Handling Equipment SMT Cooling Conveyor For SMT Production Line
Product Description
Sheet metal welded framework, powder coating on surface
Stability enhanced by robust design
Pass or check working mode for optional
Smooth and parallel width adjustment
Muti-zone concept available upon request
Variable speed control
SMEMA compatible
Specifications:
| Model No | SMTBC100-350C | SMTBC100-460C |
| PCB Size(mm) | (50x50)-(460x330) | (50x50)-(530x460) |
| Machine Size(mm) | 1000x700x920 | 1000x820x920 |
| Weight(kg) | 100 | 120 |
Technical Parameters:
| Function | PCB Loading Time | Conveyor Speed | Power Supply |
| It is used for connection, buffer, detection and cooling between production line | Approx 6 seconds | 0.5-15M/min | 100-230V, 1PH, Max 300VA |
| Transport Height | Transportation Direction | PCB Thickness | |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm |

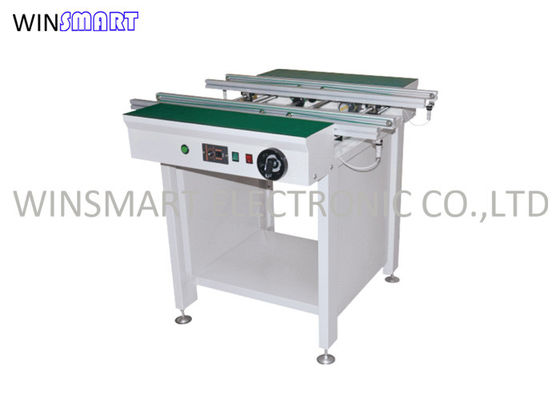

Machine Photo:
|
|
