| Brand Name: | Winsmart |
| Model Number: | SMTSR123 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

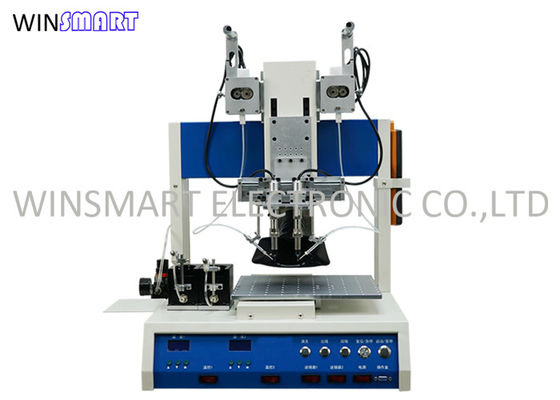

PCB Soldering Robot Machine Automatic Soldering Machine 200W Soldering Tip
Soldering Robot Features:
1. Perfect solder process setting, which can realize spot welding, pull welding, side point and other similar manual solder actions. Each instruction has independent preheating length, preheating time, welding time, tin return time, lifting height and other solder parameters.
2. Strong flexibility, standard universal fixture suitable for the use of multiple products, single platform single welding head design, can install the product while soldering is more time saving, can be applied to the mass production of multi-angle solder joint products,
3. Equipped with broken tin feeding device, it can automatically break tin and block tin alarm function, reduce the splashing of tin beads, and improve the solder quality.
4.200W temperature control system, accurate temperature, fast temperature return, ensure welding quality.
5.Adopt five-axis motion control system to accurately locate welding spots.
Soldering Robot Configuration:
1. Four-axis welding machine dual Y working platform
2. Handheld teach programmer
3. Heating controller
4. Broken tin controller
5. Solder pen assembly
6. Welding tip
7. Tin out components
8. Smoke purification filter system (optional)
Soldering Robot Specifications:
| Model | SMTSR123 |
| Dimension | 680*500*720mm |
| Weight | 80Kg |
| Control | PLC |
| Programming | Teaching box |
| Driving mode | Stepper motor |
| Stroke | 400(X)x300(Y1)x300(Y2)x80(Z) |
| Soldering head | 2 |
| Repeatability | ±0.02mm(X/Y/Z) |
| Temp. Range | 0-550℃ |
| Solder Wire Spec | ￠0.3-1.6mm |
| Number of axes | 4 |
| Working pressure | 0.4~0.6Mpa(No water mist) |
| Power | AC110V/220V 300W |
| Display | LCD |
Soldering Robot Uses Germany Weller Heater:
Robotic Soldering Machine FAQ:
Q: What is soldering time?
A: About 2 seconds per point.
Q: What kind of soldering tips can you offer?
A: We could customize make suitable shape of soldering tip according to your application.
Q: What kind of heater?
A: Weller brand.
Q: Is it possible to change parameters for only one soldering point?
A: Yes, it is ok.
Q: How to improve soldering effect when trial soldering is not good?
A: It can be improved by solder wire feeding and soldering time adjustment.
|
