| Brand Name: | Winsmart |
| Model Number: | SMTSD222 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

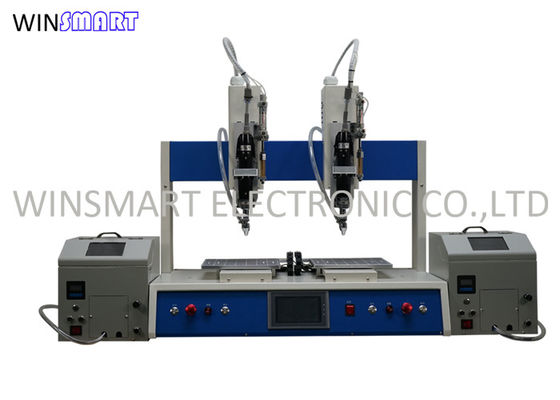

Robotic Screw Fastening Machine Automatic Screw Dispenser for Home Appliances
Machine Introduction:
Automatic screwdriver consists of two parts:
1. The feeding system will order screws and distribute them through allocation, and then send them to the screwdriver via the pipe.
2. The electric or pneumatic screwdriver will lock the screws into the right place of the products.
Compared with traditional screwdriver, automatic screwdriver robot just needs one hand to take the screwdriver and align the screw hole, saving the other hand. After locking one screw, another one will be sent to the mouth of the screwdriver the moment it is lifted.
Robotic Screwdriver Machine Advantages:
Compared to other manufacturing methods, automatic screw machining offers a number of advantages, including:
1. Automation: Automatic screw machines can run with little operator oversight. They generally only require assistance during setup and changeover.
2. Efficiency: 2 seconds per screw, increases efficiency of production.
3. Save money
Robotic Screwdriver Machine Features:
With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
High flexibility, standard universal clamp for a variety of models of screw locks.
Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.
Robotic Screwdriver Machine Specifications:
| Model | SMTSD222 |
| Moving range | 250X*300Y*100Zmm |
| Processing range | 230X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |
| Fixture platform | 2 |
| Screw head | 2 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Air blowing |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | 6 axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 800X500X725mm |
| Weight | 95kg |
Robotic Screwdriver Machine Suitable Screws:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTSD222 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Robotic Screw Fastening Machine Automatic Screw Dispenser for Home Appliances
Machine Introduction:
Automatic screwdriver consists of two parts:
1. The feeding system will order screws and distribute them through allocation, and then send them to the screwdriver via the pipe.
2. The electric or pneumatic screwdriver will lock the screws into the right place of the products.
Compared with traditional screwdriver, automatic screwdriver robot just needs one hand to take the screwdriver and align the screw hole, saving the other hand. After locking one screw, another one will be sent to the mouth of the screwdriver the moment it is lifted.
Robotic Screwdriver Machine Advantages:
Compared to other manufacturing methods, automatic screw machining offers a number of advantages, including:
1. Automation: Automatic screw machines can run with little operator oversight. They generally only require assistance during setup and changeover.
2. Efficiency: 2 seconds per screw, increases efficiency of production.
3. Save money
Robotic Screwdriver Machine Features:
With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
High flexibility, standard universal clamp for a variety of models of screw locks.
Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.
Robotic Screwdriver Machine Specifications:
| Model | SMTSD222 |
| Moving range | 250X*300Y*100Zmm |
| Processing range | 230X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |
| Fixture platform | 2 |
| Screw head | 2 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Air blowing |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | 6 axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 800X500X725mm |
| Weight | 95kg |
Robotic Screwdriver Machine Suitable Screws:
