| Brand Name: | Winsmart |
| Model Number: | SMTSD229 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

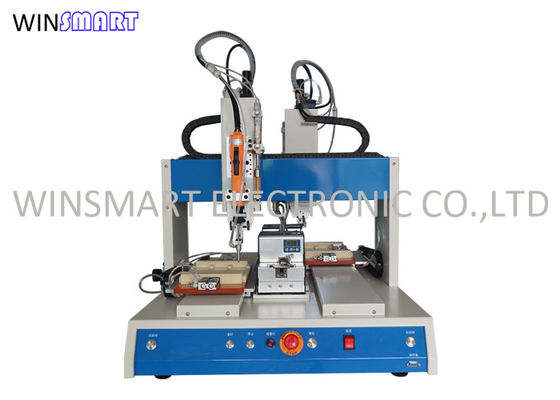

Customized Robotic Screwdriver Machine For High Volume Production
Automatic Screwdriver Machine Description:
The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Automatic Screwdriver Machine Features:
1. With intelligent detection function, it can detect leak lock, floating lock, sliding screws, etc.
2. High versatility, the replacement screw delivery module can be adapted to the M1.0-M5 screw lock
3. High flexibility, standard universal clamp for a variety of models of screw locks.
4. Dual platform design, automatic alternate operation without downtime, fast speed and high efficiency
5. 2G storage space, which can store thousands of screwdriving programs, each program supports 9999 screwdriving instructions
6. The utility model adopts the vacuum suction screw method, has good versatility, overcomes the feature that the wind blow screw can not send the length to diameter ratio of 1.2, and overcomes the characteristics that the magnetic suction screw can not take the stainless steel screw.
7. The display adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.
Automatic Screwdriver Machine Specifications:
| Model | SMTSD229 |
| Moving range | 500X*300Y1*300Y2*100Zmm |
| Processing range | 180X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |
| Fixture platform | 4 |
| Screw head | 2 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Vacuum suction |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | Multi axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 680X1000X725mm |
| Weight | 140kg |
Automatic Screwdriver Machine Details:
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make fixture and test it with the punching machine
Our Advantages:
Our machine is completed with fine finishing in accordance with the quality standards of the industry.
Our strict quality management system maintains the excellent performance and quality of our products.
The product is the preferred one in the fields for its huge economic benefits.
|
|
