| Brand Name: | Winsmart |
| Model Number: | SMTSD211 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

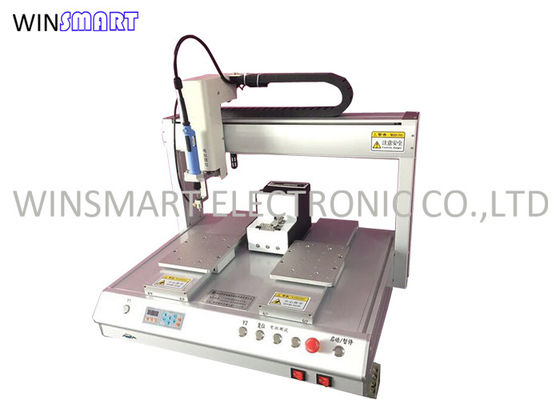

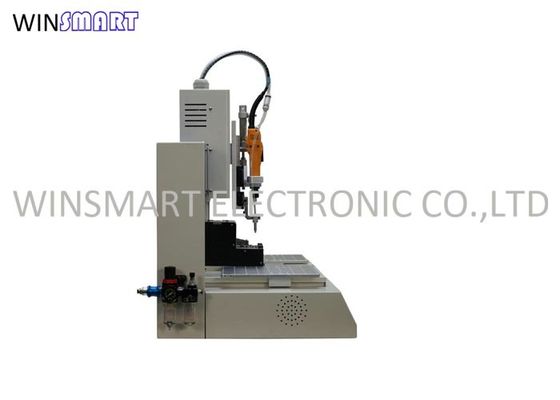

Desktop Screw Tightening Machine Screw Fastener With 8000 Screws Pocket
Automatic Screwdriver Machine Overview:
An automatic screwdriver machine is designed to streamline the screw fastening process in manufacturing environments by automating the task of driving screws into workpieces. These machines are commonly used in industries such as electronics, automotive, aerospace, and consumer goods manufacturing to improve efficiency and accuracy in assembly operations.
Automatic Screwdriver Machine Advantages:
1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.
Automatic Screwdriver Machine Specifications:
| Working Range | 500(X)*300(Y1)*300(Y2)*100(Z)mm |
| Drive mode | 3 axis driver |
| Position Accuracy | ±0.02mm |
| Control System | PLC + TP |
| Screw Feeding | absorption type |
| Operation Method | by Programming |
| Program Memory | 999 groups |
| Voltage | 110-220VAC,50HZ |
| Air Pressure | 4-5kg/cm2 |
| Machine Size | 620*600*720mm |
| Machine Weight | 65kgs |
Automatic Screwdriver Machine Features:
Automatic Feed System: Automatic screwdriver machines are equipped with a system for feeding screws to the driver mechanism, ensuring a continuous supply of screws for fastening operations.
High-Speed Operation: These machines are capable of fastening screws rapidly, increasing productivity and throughput in assembly lines.
Adjustable Torque Control: Automatic screwdriver machines often feature adjustable torque settings to ensure precise tightening of screws based on the application requirements.
Multiple Screw Sizes: Some machines can accommodate a variety of screw sizes and types, allowing for flexibility in handling different assembly tasks.
Programmable Settings: Advanced automatic screwdriver machines may have programmable settings for screw length, depth, torque, and speed, enabling customization for specific assembly processes.
Error Detection and Correction: Some machines are equipped with sensors and error detection mechanisms to identify issues such as missing screws or improper fastening, triggering corrective actions to maintain quality control.
User-Friendly Interface: These machines often feature a user-friendly interface for easy operation, monitoring of screw fastening processes, and adjustment of settings.
Automatic Screwdriver Machine Working Principle:
Screw Feeding: The automatic screwdriver machine is loaded with a supply of screws, which are fed through a mechanism that positions them for fastening.
Screw Pick-Up: The machine's driver mechanism picks up a screw from the feed system and aligns it with the workpiece.
Alignment and Fastening: The machine aligns the screw with the designated fastening point on the workpiece and drives the screw into the material using the preset torque and speed settings.
Quality Control: Sensors and detection mechanisms in the machine may check for proper screw insertion, torque levels, and other parameters to ensure the quality and accuracy of the fastening process.
Repeat Process: The automatic screwdriver machine repeats the screw feeding, pick-up, alignment, and fastening steps continuously, providing a consistent and efficient screw fastening operation.
Error Handling: If errors are detected during the fastening process, the machine may stop and alert operators to take corrective actions, such as refilling the screw feed or addressing misaligned screws.
Automatic Screwdriver Machine Application:
Please advise below screw spec for the best solution recommendation:
|
