| Brand Name: | Winsmart |
| Model Number: | SMTSD211 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

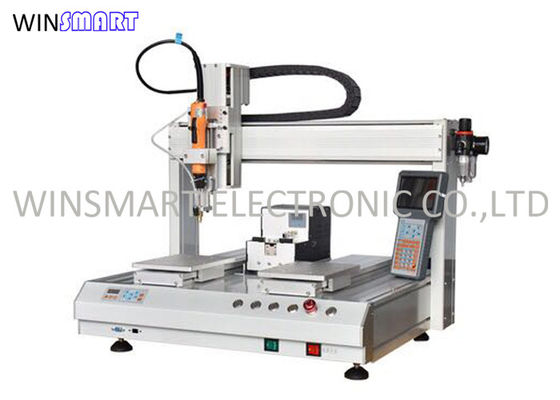

LED Lighting Automatic Screw Fastener Robotic Screwdriver System
Robotic Screwdriver System Advantages:
1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.
Robotic Screwdriver System Specifications:
| Working Range | 500(X)*300(Y1)*300(Y2)*100(Z)mm |
| Drive mode | 3 axis driver |
| Position Accuracy | ±0.02mm |
| Control System | PLC + TP |
| Screw Feeding | absorption type |
| Operation Method | by Programming |
| Program Memory | 999 groups |
| Voltage | 110-220VAC,50HZ |
| Air Pressure | 4-5kg/cm2 |
| Machine Size | 620*600*720mm |
| Machine Weight | 65kgs |
Robotic Screwdriver System Applications:
The automatic screwdriver machine is suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly,etc. Automobile industry assembly, such as automotive motors, parts assembly, etc.
Robotic Screwdriver Systems:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTSD211 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
LED Lighting Automatic Screw Fastener Robotic Screwdriver System
Robotic Screwdriver System Advantages:
1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.
Robotic Screwdriver System Specifications:
| Working Range | 500(X)*300(Y1)*300(Y2)*100(Z)mm |
| Drive mode | 3 axis driver |
| Position Accuracy | ±0.02mm |
| Control System | PLC + TP |
| Screw Feeding | absorption type |
| Operation Method | by Programming |
| Program Memory | 999 groups |
| Voltage | 110-220VAC,50HZ |
| Air Pressure | 4-5kg/cm2 |
| Machine Size | 620*600*720mm |
| Machine Weight | 65kgs |
Robotic Screwdriver System Applications:
The automatic screwdriver machine is suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly,etc. Automobile industry assembly, such as automotive motors, parts assembly, etc.
Robotic Screwdriver Systems:
