| Brand Name: | Winsmart |
| Model Number: | SMTAD1 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

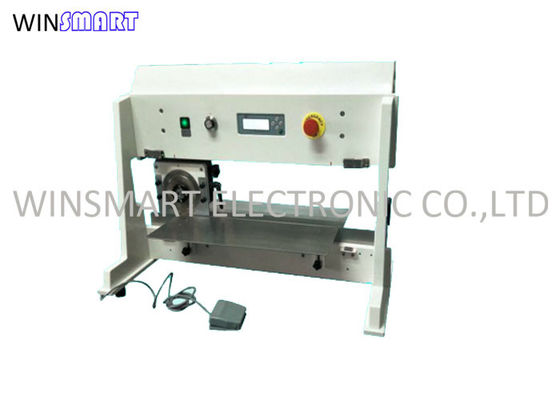

PCB Cutting Tool / PCB Cutting Machine Circuit board Separator
PCB Cutting Machine Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
PCB Cutting Machine Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly, effectively quickly. Easy to operate and causing no damdage to components on boards. Imported high- speed steel blade with long service life, mainly applied in circuit board industries such as led, SMT, etc.
PCB Cutting Machine Specs:
| Specifications | |
| Model | SMTAD1 |
| Max Cutting Length | 460mm |
| Dimension | 740*550*460mm |
| Cutting point | 0-100-200-300-400mm |
| Cutting Speed | 300mm/s ,500mm/s |
| Cutter point angle | 26~28° |
| Conveyor Belt (Options) | 1.5m |
| Cutting thickness | 0.6-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V or 110V, 50/60HZ, 250W |
| Max component height | 30 mm |
| Machine weight | 65kg / 85kg |
| Machine Warranty period |
1 year |
|
|
