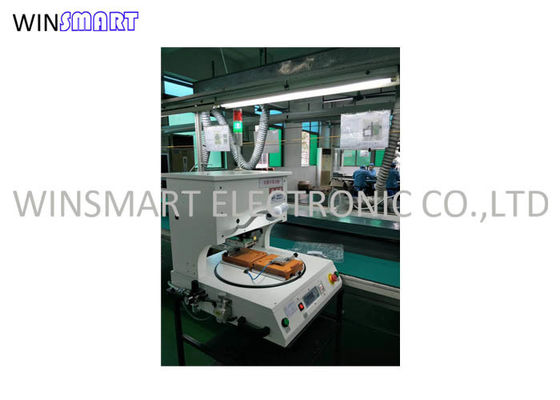

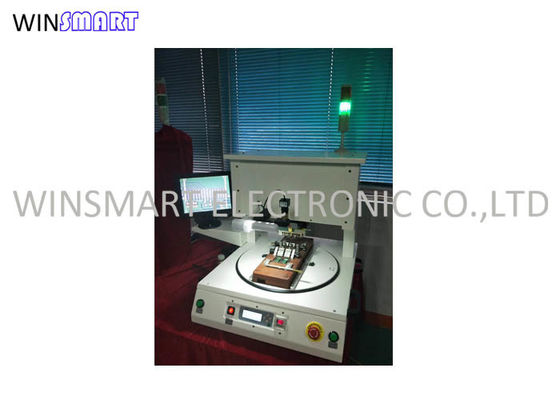

Molybdenum Thermode Hotbar Soldering Machine for FFC to PCB Soldering
Principle of Hotbar soldering machine:
1. The pulse power heating method uses the Joule heat generated when the pulse current flows through high resistance materials such as molybdenum and titanium. Generally, a hot spot is connected to the front end of the heating nozzle, and the generated electric power is fed back to the control power supply in real time to ensure the correctness of the set temperature.
2. The pulse current heating device is an instant heating method, which only conducts electric heating when the solder needs to be melted.
3. The metal welding tip heats up when current passes through and then melts the solder. After the solder has melted, stop energizing and cool down. The pressurized state is until the solder solidifies, and high-reliability soldering without false soldering or floating can be obtained.
Hot Bar Soldering Machine Features:
Unique pulse heat technology provides fastest soldering head heating.
Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
Closed Loop PID temperature control with clearly visible LED display.
Soldering time can be programmable and is triggered by temperature.
Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
Programmable pressure switch with LCD display for precise force control.
CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
Hot Bar Soldering Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
|
|
