| Brand Name: | Winsmart |
| Model Number: | SMTR17 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |

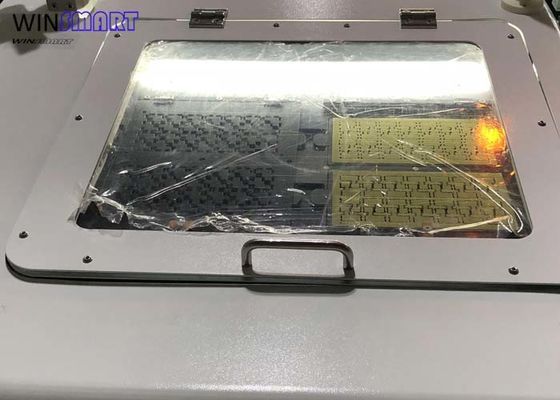

Routed PCB Separator Machine With Friendly Software Max 100mm/s Cutting Speed
PCB Router Features:
1. Optional single/dual platform
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
PCB Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |
Package:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTR17 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Routed PCB Separator Machine With Friendly Software Max 100mm/s Cutting Speed
PCB Router Features:
1. Optional single/dual platform
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
PCB Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |
Package:
