| Brand Name: | Winsmart |
| Model Number: | SMTIR500 |
| MOQ: | 1 Set |
| Price: | USD1-35000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |

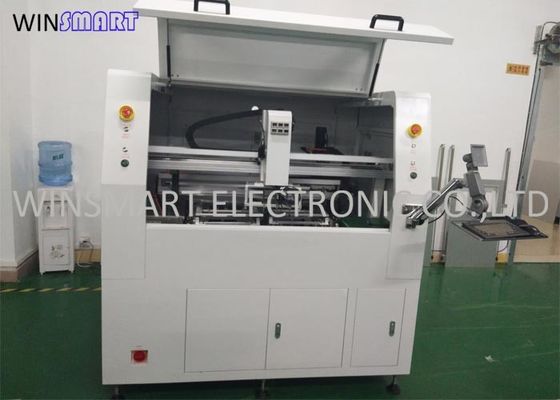

Inline PCB Router Machine For PCB Assembly with 2 Tables 0.8-3.0mm Cutter
| NO. | DESCRIPTION | DATA |
| 1 | PCB max size | 400×400mm(could be customized) |
| 2 | Servo system | X,Y Axis AC servo motor(400W) Z Axis(100W) |
| 3 | Spindle speed | 2000-60000rpm/min |
| 4 | Cutting speed | 1-100mm/sec |
| 5 | PCB position | Jig fixture |
| 6 | Picking system | Auto |
| 7 | Dust collect | Bottom collect |
| 8 | Tool | φ0.8～3mm |
| 9 | Cutting accuracy | ±0.05mm |
| 10 | PC | Windows 7 or windows 10 |
| 11 | Moving speed | 1000mm /s(max) |
| 12 | Programming | PC/CCD |
| 13 | Air supply | 5-8㎏/㎝³ |
| 14 | Power Supply | AC220V±5％ 50 /60Hz 3kw |
Specification:
1) Model: SMT-IR500
2) Machine dimension: 1902(W)x1373(D)x1700(H), weight: 1400kgs
3) Motion system
a. Motor: 7-axis AC bus servo motor
b. Repeatability: ±0.02mm
c. Cutting precision: ±0.05mm
d. Repeatability: ±0.02mm
e. Resolution: ±0.01mm
f. Axis: X/Y1/Y2/Z/A/B/C

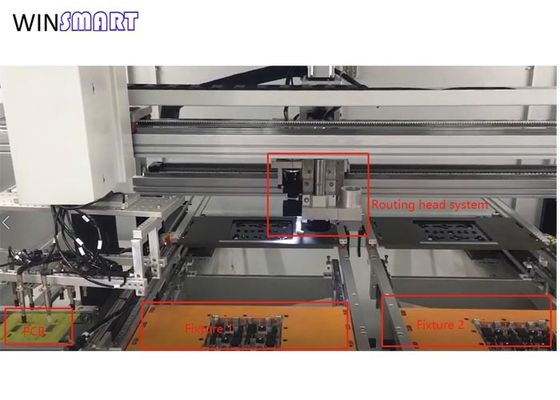

4) Working platform
a. Working tables: 2
b. PCB positioning way: pin holes or waste PCB edge
c. Panel forward/come out: automatic
d. Milling area: 400x500mm
e. PCB thickness: 0.3-3mm
5) Spindle motor
a. Power: 380W, brand: Germany Kavo
b. Max spindle speed: 100000rpm/ ESD
c. Cooling way: air cooling
d. Routing bits: handle 3.175mm dia
e. Routing bit replacing way: auto/manual
6) Laser altimetry system
a. Function: check the PCB loading height, prevent pressure plate
b. Measure range: 0.005mm-14mm
c. Measure precision: ±0.005mm
7) Vacuum system
a. Capacity: 63L/minute
b. Function: Self-contained vacuum blowing function
8) Dust collection system
a. Power: 3HP air cleaner
b. Exhaust volume: 4-5 M3/Minute
c. Static pressure: -2300mmaq
9) Electrical supply
a. Power: 220V, Phase I, 20A, 50/60Hz
b. Gas source: 4-5 L/Minute
Machine Operation System
1. Operation interface: Windows 7
2. Visual system: High resolution digital camera / Cognex Vision System
3. Programming:
a. AOI scanning/CCD grab coordinates
b. Angled film copy function
c. Modify coordinates, ccd automatically sync
d. Other functions: Tool diameter compensation, Dust collector cleaning tips
Milling Machine Features:
1. Cutting path full closed loop, real-time error tracking, feedback, compensation, China's first high-end intelligent system
2. Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
3. China's first laser height measurement function, simple operation and higher safety performance
4. With the upper dusting configuration, with the gland function, the vacuuming effect is better
5. Automatically identify barcodes and retrieve cutting programs
Package:
|
|
