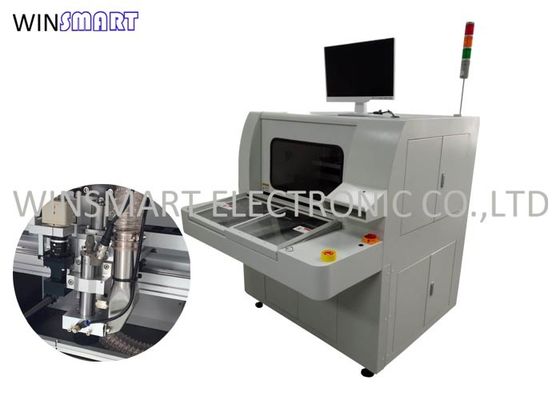

PCB Router PCB Milling Machine Twin Tables and Bottom Vacuum Cleaning System
PCB Router Features:
• Floor type double table, with a speed of 100 mm / s and a positioning speed of 800 mm / s.
• High quality shaft system enables the system to accelerate and decelerate quickly, reduce synchronization time, improve productivity and maintain high accuracy.
• Use high quality hardware to ensure high rigidity and high performance.
• Automatic mark point positioning and correction system, real-time display of moving path and simulated route tracking, clear display at a glance, automatic alignment and correction function, high cutting accuracy
• All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft.
• Avoid tin crack and parts damage caused by manual breaking.
• Avoid the use of punching or hand breaking, resulting in mechanical stress problems.
• Suitable for cutting arc and line.
• It is suitable for cutting small boards, such as mobile phone substrate, PDA, PC interface card, etc.
PCB Router Specification:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1200mm*1850mm |
| Weight | 600KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.01mm |
| Axis working area(max) | 730mm*450mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 280x280mm |
| PCB thick (max) | 3.5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 20000-60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 5KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | Safty sensor |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
PCB Router Shipping Ways:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTR07 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
PCB Router PCB Milling Machine Twin Tables and Bottom Vacuum Cleaning System
PCB Router Features:
• Floor type double table, with a speed of 100 mm / s and a positioning speed of 800 mm / s.
• High quality shaft system enables the system to accelerate and decelerate quickly, reduce synchronization time, improve productivity and maintain high accuracy.
• Use high quality hardware to ensure high rigidity and high performance.
• Automatic mark point positioning and correction system, real-time display of moving path and simulated route tracking, clear display at a glance, automatic alignment and correction function, high cutting accuracy
• All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft.
• Avoid tin crack and parts damage caused by manual breaking.
• Avoid the use of punching or hand breaking, resulting in mechanical stress problems.
• Suitable for cutting arc and line.
• It is suitable for cutting small boards, such as mobile phone substrate, PDA, PC interface card, etc.
PCB Router Specification:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1200mm*1850mm |
| Weight | 600KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.01mm |
| Axis working area(max) | 730mm*450mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 280x280mm |
| PCB thick (max) | 3.5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 20000-60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 5KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | Safty sensor |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
PCB Router Shipping Ways:
