| Brand Name: | Winsmart |
| Model Number: | SMTAD5 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

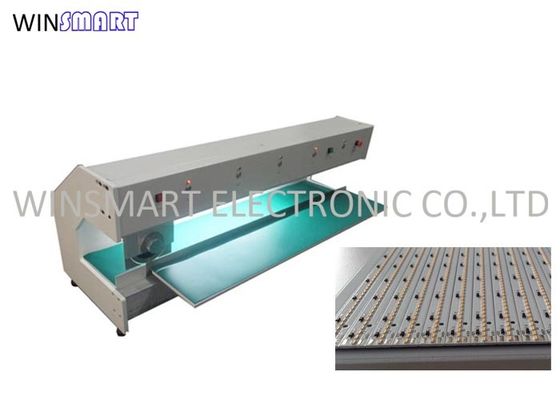

900mm Cutting Length Automatic PCB Depanelizer PCB Cutting Machine
Automatic PCB Depanelizer Application:
1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.
2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...
3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.
Automatic PCB Depanelizer Specs:
| Model | SMTAD5 |
| Machine Dimension | L1200*W550*H460 |
| Max Cutting Length | 900mm |
| PCB Material | FR4, MCPCB |
| Cutting Speed | 300mm/s or 500mm/s |
| PCB Thickness | 0.6-2.5mm |
| Power | 220/110V |
| Machine Weight | 81kgs |
Automatic PCB Depanelizer Features:
1. Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2. Effectively reduce stress and prevent solder point chap from PCB cutting.
3 .PCB cutting speed can be adjusted by the rotary knob.
4. PCB cutting stroke can be set free and setting value can be showed in LCD.
5. Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out.
6. Optional PCB conveyor belt to remove finished PCB.
Automatic PCB Depanelizer Advantages:
1.Easy maintanance and operation
2.Low bending stress,no vibration
3.specially for resin substrate PCB with pre-scored V groove
4.safety use
Warranty Period and Service Scope
The equipment has been debugged and checked before leaving the factory, and the company will guarantee its use within the following conditions.
1. Warranty period
One year after leaving the factory
2. Service scope
During the warranty period, the company will repair the fault free of charge, but the following conditions will not be covered by the warranty.
1. Use consumables and components not specified by the company.
2. Improper use or maintenance by operators.
3. Normal consumption of consumables.
4. Other natural disasters.
OUR SERVICE:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We will provide the consumable parts at an resonable price.
4. 24 hours x 7days online service, free technical support.
5. Machine has been tested before delivery.
6. We have manual instruction and Guiding Videos for installation, operation and machine's using and maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
|
|
