| Brand Name: | Winsmart |
| Model Number: | SMTSD211 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

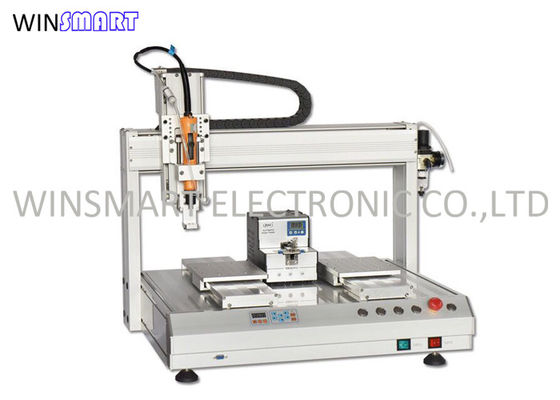

High-efficiency Desktop Screwdriver Fasten Robot Automatic Locking Screw Machine
The Desktop Screwdriver Fasten Robot is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Features:
1. Wide universality, small size, cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inpsection function, for miss locking, unstable locking, loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations, through a simple programming, can be put into production, convenient for production and management.
5. The Y asis can be made into double staion, so the operator can load alternately.
6. Accurate forsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Specifications:
| Model | SMTSD211 |
| Moving range | 500X*300Y1*300Y2*100Zmm |
| Processing range | 180X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |
| Fixture platform | 2 |
| Screw head | 1 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Vacuum suction |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | 4 axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 680X500X725mm |
| Weight | 75kg |
Applications:
Our Certificate:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTSD211 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
High-efficiency Desktop Screwdriver Fasten Robot Automatic Locking Screw Machine
The Desktop Screwdriver Fasten Robot is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Features:
1. Wide universality, small size, cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inpsection function, for miss locking, unstable locking, loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations, through a simple programming, can be put into production, convenient for production and management.
5. The Y asis can be made into double staion, so the operator can load alternately.
6. Accurate forsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Specifications:
| Model | SMTSD211 |
| Moving range | 500X*300Y1*300Y2*100Zmm |
| Processing range | 180X*300Y*110Zmm |
| Repetitive accuracy | ±0.02mm(X/Y/Z) |
| Fixture platform | 2 |
| Screw head | 1 |
| Applicable screw | M1.0-M5.0 |
| Screw conveying method | Vacuum suction |
| Driving mode | precision stepping motor+precision lead rail |
| Axes of motion | 4 axes |
| Display mode | LCD |
| Control system | special controller for screwdriver machine |
| Program record capacity | 9999 |
| Programming interface | teaching pandent |
| Air pressure | 4~6kg cm2 |
| Vltage | AC220V |
| Dimensions | 680X500X725mm |
| Weight | 75kg |
Applications:
Our Certificate:
