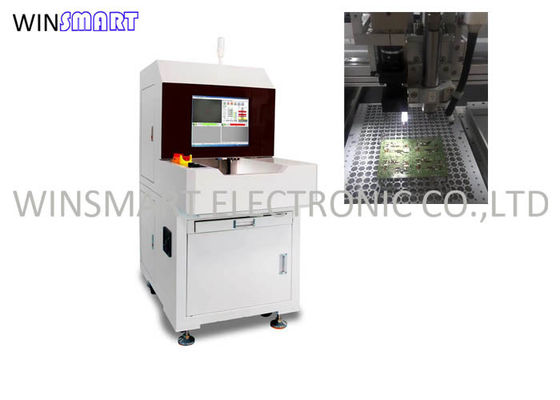

Small Footprint Stand Alone PCB Router Machine Allow 0.6mm Dia Routing Bits
PCB Router Description:
A Depaneling router is a machine similar to wood router. It uses a router bit to mill the material of the PCB. The hardness of the PCB material wears down the bit, which must be replaced periodically.
Routing requires that single boards are connected using tabs in a panel. The bit mills the whole material of the tab. It produces much dust that has to be vacuumed. It is important for the vacuum system to be ESD-safe. Also the fixturing of the PCB must be tight - usually an aluminium jig or a vacuum holding system is used.
The two most important parameters of the routing process are: feed rate and rotational speed. They are chosen according to the bit type and diameter and should remain proportional (i.e. increasing feed rate should be done together with increasing the rotational speed).
Routers generate vibrations of the same frequency as their rotational speed (and higher harmonics), which might be important if there are vibration-sensitive components on the surface of the board. The strain level is lower than for other depaneling methods. Their advantage is that they are able to cut arcs and turn at sharp angles. Their disadvantage is lower capacity.
PCB Router Features:
Smooth cutting edge
Low cutting stress
Manul loading /unloading
CCD system for precise cutting
Adjustable 1-100mm/s cutting speed
PCB Router Specifications:
| Machine Dimension | 613x700x1600mm |
| Machine Weight | 300kgs |
| Positioning System | CCD and fixture |
| Control System | AC Servo Motor |
| Power Supply | 220V |
| Vacuum Mode | Top/Bottom Vacuum |
| Working Area | 310x360mm |
| Spindle | 60000rpm |
| Cutting Speed | 0-100mm/S |
| Repeatability | ± 0.02mm |
| Safe Door | Manual |
PCB Router Application:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTRS12 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Small Footprint Stand Alone PCB Router Machine Allow 0.6mm Dia Routing Bits
PCB Router Description:
A Depaneling router is a machine similar to wood router. It uses a router bit to mill the material of the PCB. The hardness of the PCB material wears down the bit, which must be replaced periodically.
Routing requires that single boards are connected using tabs in a panel. The bit mills the whole material of the tab. It produces much dust that has to be vacuumed. It is important for the vacuum system to be ESD-safe. Also the fixturing of the PCB must be tight - usually an aluminium jig or a vacuum holding system is used.
The two most important parameters of the routing process are: feed rate and rotational speed. They are chosen according to the bit type and diameter and should remain proportional (i.e. increasing feed rate should be done together with increasing the rotational speed).
Routers generate vibrations of the same frequency as their rotational speed (and higher harmonics), which might be important if there are vibration-sensitive components on the surface of the board. The strain level is lower than for other depaneling methods. Their advantage is that they are able to cut arcs and turn at sharp angles. Their disadvantage is lower capacity.
PCB Router Features:
Smooth cutting edge
Low cutting stress
Manul loading /unloading
CCD system for precise cutting
Adjustable 1-100mm/s cutting speed
PCB Router Specifications:
| Machine Dimension | 613x700x1600mm |
| Machine Weight | 300kgs |
| Positioning System | CCD and fixture |
| Control System | AC Servo Motor |
| Power Supply | 220V |
| Vacuum Mode | Top/Bottom Vacuum |
| Working Area | 310x360mm |
| Spindle | 60000rpm |
| Cutting Speed | 0-100mm/S |
| Repeatability | ± 0.02mm |
| Safe Door | Manual |
PCB Router Application:
