| Brand Name: | Winsmart |
| Model Number: | SMTID3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Inline V-cut PCB Separator Machine Multi-blade PCB Cutting Machine
Inline PCB Separator Machine Process:
1. Auto feeding connecting PCB loader or manual feeding
2. Panel loading on depaneling machine and finish positioning
3. Start vertical depaneling
4. PCB flow into turnover structure
5. Start horizontal depaneling
6. Separated boards loading on flat belt
Inline PCB Separator Machine Features:
Workable for “#”shape depaneling.
Horizontal and vertical depaneling is optional.
Blade set can be quickly changed.
Could connect PCB loader and PCB unloader to realize fully automated production to save labor.
Simple operation, workers can operate it after training.
Unique new blade design, lifetime should be increased by 1.5-2 times.
Safety: Sensor is used to ensure safe production.
Inline PCB Separator Machine Specification:
| Blade dimension | Circular blade:¢80 ¢60mm Linear Blade: 356×43.5×6mm |
| PCB width | 300mm(could be customized) |
| Driven mode | Stepping / Servo motor(optional) |
| V-cut angel | >40° |
| Cutting speed | 300-500/s |
| Blade material | High speed steel |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 220/110V |
| Dimension | 1250(1560)mm×800mm×1295mm |
| Packaging weight | 300kgs |

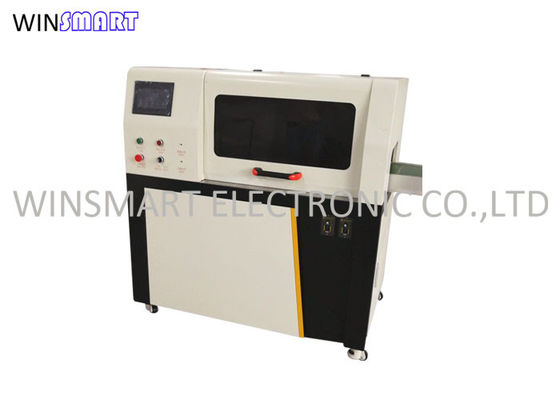

Machine Photo:
|
|
