| Brand Name: | Winsmart |
| Model Number: | SMTAD3 |
| MOQ: | 1 set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

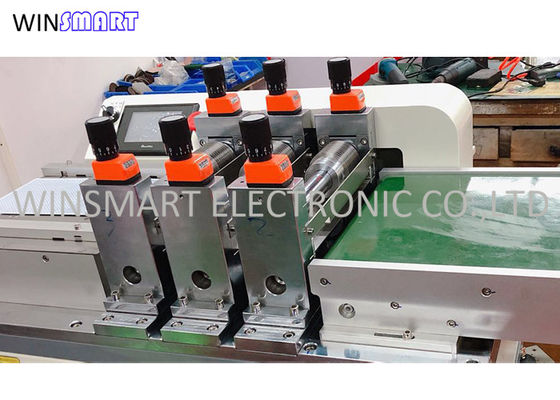

Manual Feeding Multi Blade PCB Depanelizer Machine V Cut PCB Depanler
Multi Blade PCB Depanelizer Advantages:
The upper and below blade can be adjusted accuracy. The cutting thinness shall be in the range of 0.6-3.5mm.
The space of upper and below blade can be adjusted between 8-25mm. Control the accuracy around 0.1mm
The distance of border upon 2 group blade can be adjusted from 8mm to 25mm, this can raise your adjusting speed.
Speed of transport belt can be adjustable.
Multi Blade PCB Depanelizer Features:
1. It can cut many boards with multiple sets of knives work at the same time..
2. The knife distance can be adjustable by spacer.
3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 5mm-100mm.
4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long life time.
5. It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7. Thickness range of PCB: 0.3-3.0mm
8. The machine adopts 3 blade sets to separate boards with simple operation and high efficiency to avoid bending issue.
Multi Blade PCB Depanelizer Specification:
| Model | SMTAD3 |
| Max cutting length | No limit |
| Min cutting length | 200mm |
| Max panel width | 250mm |
| Custom cutting width | 300mm |
| Min PCB width | 5mm |
| PCB thickness | 0.3-3.0mm |
| Feeding speed | 0-500mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110-220V |
| Dimension | 610x370x400mm |
| Packaging weight | 80kgs |
For more details, please feel free to contact us.
|
|
