| Brand Name: | Winsmart |
| Model Number: | SMTR05 |
| MOQ: | 1 Set |
| Price: | USD1-100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C, Western Union |
Dual Tables PCB CNC Router Machine
PCB CNC Router Machine Description:
When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 4 different depth levels, which will cut down on bit replacement. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process.
PCB CNC Router Machine Features:
Two-slide PCB Separator
Low stress
Sharp cutting edge
Manul loading /unloading
High speed cutting by 4 axes control(XY moving at the same time)
Easy teaching with image processing
Optional top and bottom cleaning system
PCB CNC Router Machine Specifications:
| Router Machine | SMTR05 |
| X/Y Cutting Speed | 0 ~100mm/s |
| Repeatability precision | ± 0.01mm |
| X/Y1/Y2/Z control mode | Industrial IPC and PC |
| X/Y1/Y2/Z driven mode | AC Servo Motor |
| Operation and data storage | PC |
| Cutting Precision | ± 0.05mm |
| Spindle Speed | 60000rpm(Germany KKAVO) |
| Power Supply | 220V/110V |
| Air Pressure | 4.5kg/cm 2 |
| Power Rate | 1.8KW |
| Vacuum Cleaner | |
| Mode | Up or Bottom |
| Power Supply | 380V |
| Up Cleaner Dimension | L650*W400*H1350mm |
| Bottom Cleaner Dimension | L665*W635*H1650mm |

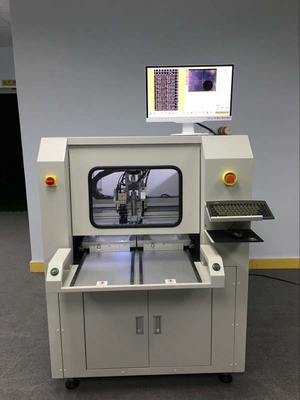

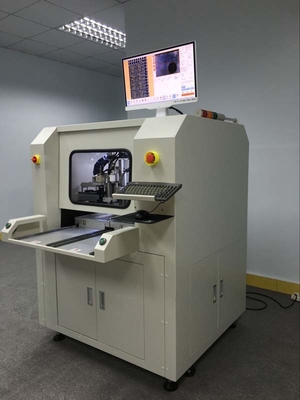

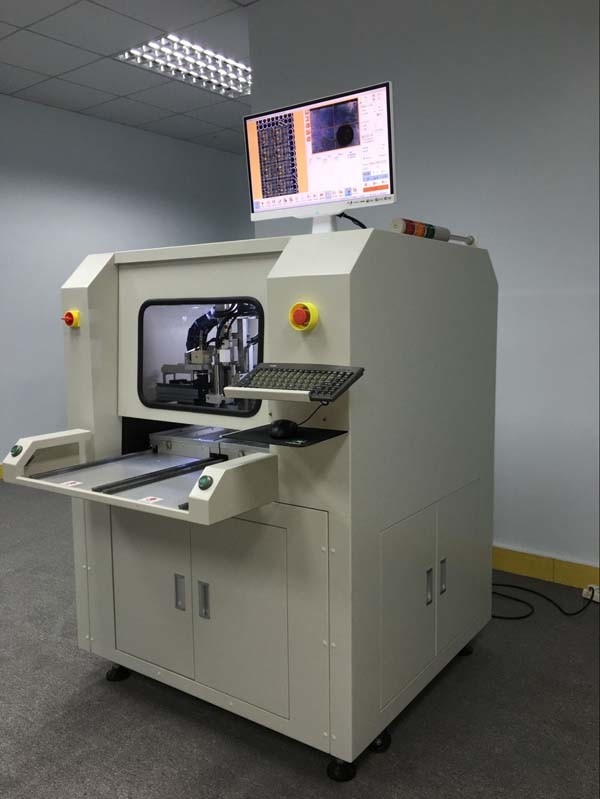

PCB CNC Router Machine Details:
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
|
|
