| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

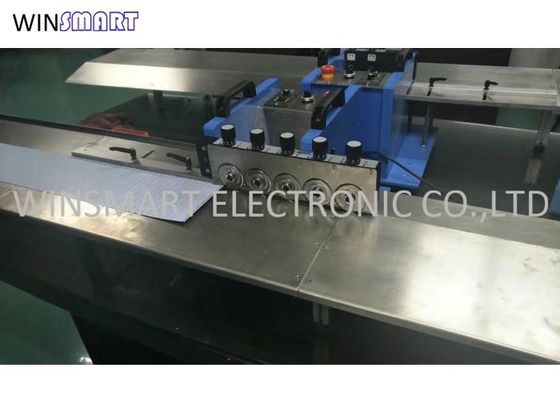

2.4M Platform Aluminum LED Strip PCB Depanelizer V-cut PCB Cutting Machine
PCB Depanelizer Features:
1. Separates panels up to 0.1"
2. The longest panel: No limit
3. Minimum board thickness of 0.024"
4. Shears boards safely with parts as close as 0.02" to score line.
5. Only allow correct boards placement to avoid mistakes.
PCB Depanelizer Description:
This equipment is designed to minimize board stress and avoid component damage, and it has 5 pairs of precision blades to ensure the board does not bend or deform. It is a improvement model comparing with the 3 pairs model, with less cutting stress. Blade guide can be adjusted vertically for different LED boards with no cutting length limit.
PCB Depanelizer Specification:
| Model | SMTD3L |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 50kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 85kgs |
PCB Depanelizer Packaging:
The machine is locked in the wooden case base by screws, platform is installed by srews simply.
|
