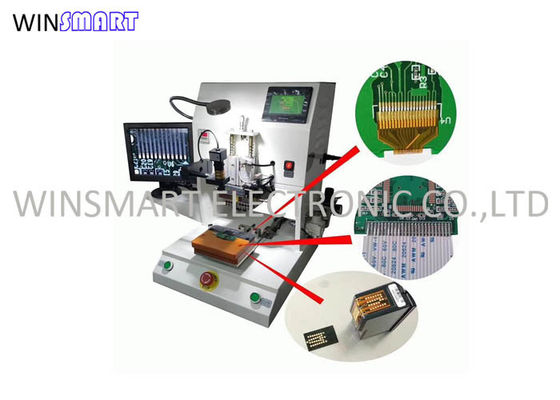

FFC to PCB Soldering Machine Hot Bar Soldering Machine Pitch 0.2mm
FFC to PCB Soldering Machine Features:
1. Unique pulse heat technology provides fastest soldering head heating.
2. Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3. Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4. Closed Loop PID temperature control with clearly visible LED display.
5. Soldering time can be programmable and is triggered by temperature.
6. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7. Programmable pressure switch with LCD display for precise force control.
8. CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
FFC to PCB Soldering Machine Specification:
| Machine size | 610×410×450mm |
| Working area | Max 150*150mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
FFC to PCB Soldering Machine Application:
LCD Module, Solar Battery, Camera , Electronic Components, Coil / Inductor, Mobile Devices, PWB, Power Devices.
All where there need to be heated or fusing or joining or forming.
FFC to PCB Soldering Machine Maintenance:
Thermode head:
1. Check it every 5000 operations
2. Replace new thermode every 80000 operations.
Thermocouple:
Visually inspection for connection status.
Fixture:
1. Some rosin stains will accumulate in the fixture after long Usage. To ensure that the level of the thermode and products, must clean fixture surface per day.
2. Check the wear every 5000 operations
3. Replace new fixture every 200000 operations.
Temperature:
Keep records for difference between actual surface temperature and preset temperature using temperature Logger when replace thermode, fixture & products.
Working table: clean everyday.
|
