| Brand Name: | Winsmart |
| Model Number: | SMTL300 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

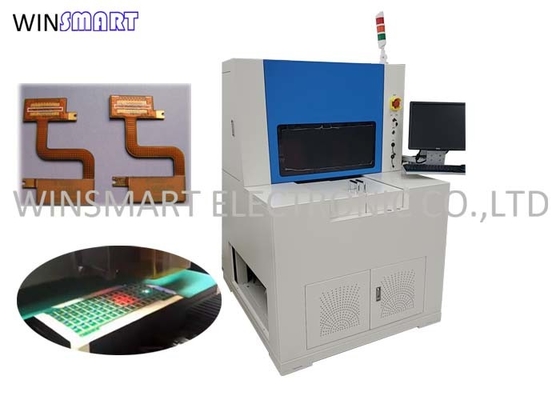

300x300mm Mini UV PCB Laser Cutter SMT Machine Manufacturers
PCB Laser Cutter Description:
The PCB laser cutter is mainly used in the cutting FPC / PCB / COB / LCP / MPI / COF / cop / pi / CPI in consumer electronics by solid-state laser source. The equipment integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products. It is a non-contact way, without mechanical cutting stress.
PCB Laser Cutter Features:
1. Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product.
2. High quality laser, no contact processing, no burr and burr after cutting.
3. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics
4. Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc
PCB Laser Cutter Specifications:
| Laser | solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | UV 15W@30KHz |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 300mmx350mm(Customizable) |
| Scanning Speed | 2500mm/S |
| Cutting Speed | Less 2500mm/S |
| Cutting Path | Line, Curve, Circle, Alien |
| Air Pressure | 0.6-0.8MPa |
| Dimension | 1250x1250x1740mm |
| Weight | 1500kgs |
PCB Laser Cutter Advantages:
1. No dust, good to PCB conductivity.
2. No stress, ±5μm cutting precision
3. Import gerber file for easy operation
4. Alien/line cutting is available
5. Non-contact, smooth cutting edge
Mechanical Cutting Disadvantages:
1. More dust, affect conductivity
2. Has cutting stress, cause damage to PCB
3. Need to replace cutters
4. Cannot do alien cutting
5. Easy to collapse
PCB Laser Cutter Fixture:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTL300 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
300x300mm Mini UV PCB Laser Cutter SMT Machine Manufacturers
PCB Laser Cutter Description:
The PCB laser cutter is mainly used in the cutting FPC / PCB / COB / LCP / MPI / COF / cop / pi / CPI in consumer electronics by solid-state laser source. The equipment integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products. It is a non-contact way, without mechanical cutting stress.
PCB Laser Cutter Features:
1. Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product.
2. High quality laser, no contact processing, no burr and burr after cutting.
3. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics
4. Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc
PCB Laser Cutter Specifications:
| Laser | solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | UV 15W@30KHz |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 300mmx350mm(Customizable) |
| Scanning Speed | 2500mm/S |
| Cutting Speed | Less 2500mm/S |
| Cutting Path | Line, Curve, Circle, Alien |
| Air Pressure | 0.6-0.8MPa |
| Dimension | 1250x1250x1740mm |
| Weight | 1500kgs |
PCB Laser Cutter Advantages:
1. No dust, good to PCB conductivity.
2. No stress, ±5μm cutting precision
3. Import gerber file for easy operation
4. Alien/line cutting is available
5. Non-contact, smooth cutting edge
Mechanical Cutting Disadvantages:
1. More dust, affect conductivity
2. Has cutting stress, cause damage to PCB
3. Need to replace cutters
4. Cannot do alien cutting
5. Easy to collapse
PCB Laser Cutter Fixture:
