| Brand Name: | Winsmart |
| Model Number: | SMTS22 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
ACF Film Hot Bar Soldering Machine Features:
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Rotable dual fixtures with high working efficiency
12. Touch screen input data, simplify the operation.
13. Real-time display temperature curve and temperature data
ACF Film Hot Bar Soldering Machine Specification:
| Machine size | 660×620×1260mm |
| Working area | Max 150*150mm |
| Machine weight | 120Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
ACF Film Hot Bar Soldering Machine Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB, ACF Soldering.
ACF Film Hot Bar Soldering Machine Operating Instructions:
1. First check whether the gas and electricity enter. Whether the air inlet sliding switch is pushed forward and opened, and whether the air pressure is above 0.4MPa
2. Check whether the emergency stop button of the power supply at position I pops up and whether the indicator light of the machine is green
3. Check whether the formula parameters used are those used by the current model
4. Check whether the welding joint and fixture correspond to the model.
5. Test whether the machine is normal.
6. Insert the PCB and FPC into the fixture respectively
7. Start button for welding
8. Check whether the welded products are firm under the magnifying glass, and there is no short circuit with tin, etc

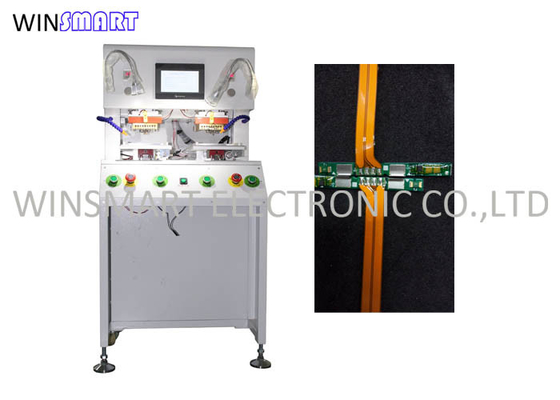

ACF Film Hot Bar Soldering Machine Photo:
|
|
