| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

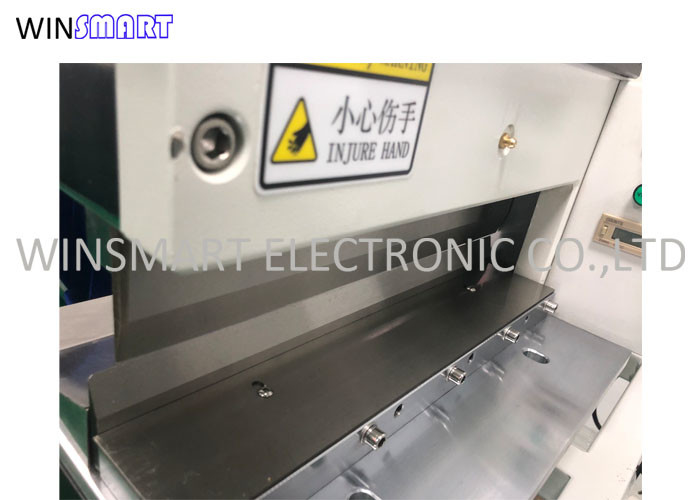

Pneumatic Type Aluminum PCB Cutting Machine V-Cut Groove PCB Depanelizer
Pneumatic Type Aluminum PCB Cutting Machine Application:
SMT, Smart wearable, Precision instruments, tablet, Automotive electronics, new energy, semiconductor, Medical Equipment, communications, communications, white Goods, LED lighting, etc
Pneumatic Type Aluminum PCB Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Condition | New |
| Blade Material | High speed steel |
| Customized Blade | Available |
| Blade Re-sharpen | Yes |
| Power | 110/220V |
| Machine Weight | 130kgs |
Pneumatic Type Aluminum PCB Cutting Machine Features:
1. Using the latest pneumatic/ electric lightweight design, especially suitable for cutting precision SMD sheet.
2. Non-hob cutting, small cutting travel, not easy to damage the product and come with operation safety, anti-stay function.
3. The tool is made of imported high-speed rigid precision grinding, which can be used repeatedly. It is suitable for PCB / aluminum substrate of various thickness.
4. Shearing undercutting type to minimize the internal stress generated when cutting the board and avoid tin cracks.
5. The distance between the upper and lower blade can be precisely adjusted to avoid tool wear due to the different depths of the V-groove.
Pneumatic Type Aluminum PCB Cutting Machine Case:
|
| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Pneumatic Type Aluminum PCB Cutting Machine V-Cut Groove PCB Depanelizer
Pneumatic Type Aluminum PCB Cutting Machine Application:
SMT, Smart wearable, Precision instruments, tablet, Automotive electronics, new energy, semiconductor, Medical Equipment, communications, communications, white Goods, LED lighting, etc
Pneumatic Type Aluminum PCB Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Condition | New |
| Blade Material | High speed steel |
| Customized Blade | Available |
| Blade Re-sharpen | Yes |
| Power | 110/220V |
| Machine Weight | 130kgs |
Pneumatic Type Aluminum PCB Cutting Machine Features:
1. Using the latest pneumatic/ electric lightweight design, especially suitable for cutting precision SMD sheet.
2. Non-hob cutting, small cutting travel, not easy to damage the product and come with operation safety, anti-stay function.
3. The tool is made of imported high-speed rigid precision grinding, which can be used repeatedly. It is suitable for PCB / aluminum substrate of various thickness.
4. Shearing undercutting type to minimize the internal stress generated when cutting the board and avoid tin cracks.
5. The distance between the upper and lower blade can be precisely adjusted to avoid tool wear due to the different depths of the V-groove.
Pneumatic Type Aluminum PCB Cutting Machine Case:
