| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

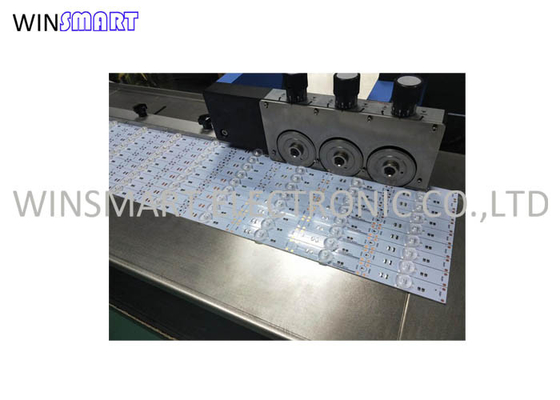

1500mm Multi-blades LED PCB Separator Aluminum PCB Cutting Machine
LED PCB Separator Introduction:
This equipment is designed to minimize board stress and avoid component damage, and it has 3 pairs of precision blades to ensure the board does not bend or deform. The first pair of blades cut 40% of PCB web, and second pair of blades cut 40% of PCB web, the third pair of blades cut the last 20% of PCB to finish depaneling. Blade guide can be adjusted vertically for different LED boards with no cutting length limit.
LED PCB Separator Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 50kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |
LED PCB Separator Features:
1. Separates panels up to 0.1"
2. The longest panel: No limit
3. Minimum board thickness of 0.024"
4. Shears boards safely with parts as close as 0.02" to score line.
5. Only allow correct boards placement to avoid mistakes.
6. Cutting speed is adjustable.
7. Excellent equipment for LED boards depaneling
LED PCB Separator Application:
It is widely used in LED lighting industry, suitable for both FR4 and Aluminum PCB boards, and it has no limit on cutting length.
|
