| Brand Name: | Winsmart |
| Model Number: | SMTL300 |
| MOQ: | 1 set |
| Price: | USD1-150K/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

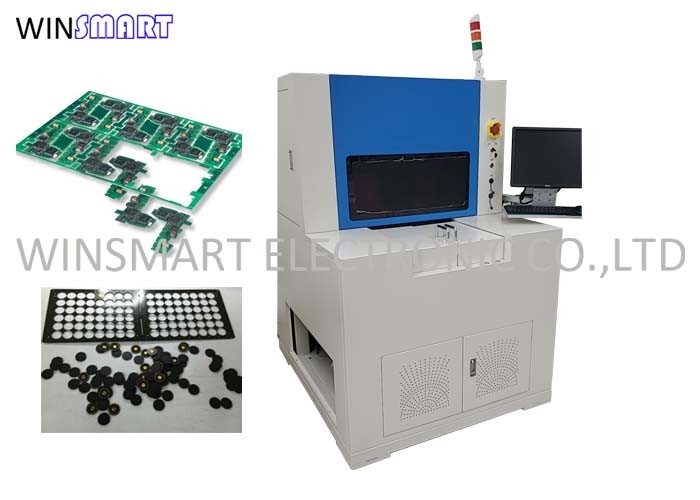

Economic Imported UV Head V Cut Machine PCB Laser Depaneling Machine
Laser Depaneling Machine Function:
The PCB laser cutting machine is mainly used in the cutting FPC / PCB / COB / LCP / MPI / COF / cop / pi / CPI in consumer electronics by solid-state laser source.
The equipment integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products.
It is a non-contact way, without mechanical cutting stress.
Laser Depaneling Machine Specifications:
| Laser | solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | UV 15W@30KHz |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 300mmx350mm(Customizable) |
| Scanning Speed | 2500mm/S |
| Cutting Speed | Less 2500mm/S |
| Cutting Path | Line, Curve, Circle, Alien |
| Air Pressure | 0.6-0.8MPa |
| Dimension | 1250x1250x1740mm |
| Weight | 1500kgs |
Laser Depaneling Machine Features:
Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product. High quality laser, no contact processing, no burr and burr after cutting. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics. No stress, ±5μm cutting precision. Import gerber file for easy operation. Alien/line cutting is available. Non-contact, smooth cutting edge.
Laser Depaneling Machine Applications:
Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc. No dust, good to PCB conductivity.
|
