| Brand Name: | Winsmart |
| Model Number: | SMTAD5 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

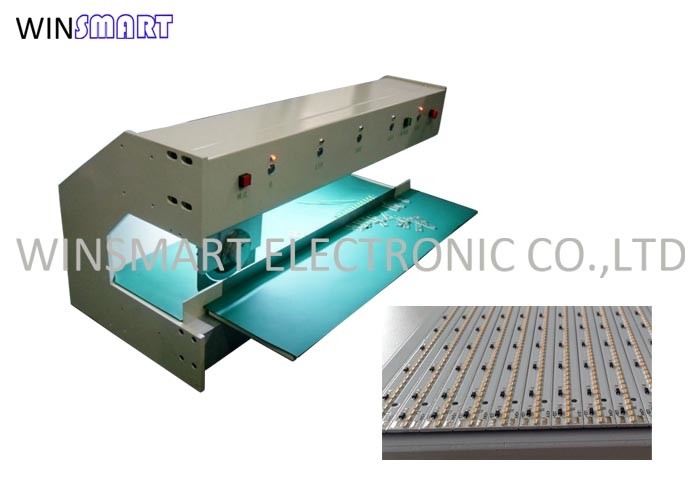

400mm Aluminum PCB Singulation MCPCB Cutting Machine PCB V Cutter
PCB Singulation Features:
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5. Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
8. Blades could be re-sharpened
9. Blades could be customized as customers’ request
PCB Singulation Specifications:
| Model | SMTAD5 |
| Machine Dimension | L650*W550*H460 |
| Max Cutting Length | 400mm |
| PCB Material | FR4, MCPCB |
| Cutting Speed | 300mm/s or 500mm/s |
| PCB Thickness | 0.6-2.5mm |
| Power | 220/110V |
| Machine Weight | 50kgs |
PCB Singulation Installation:
1. The machine should be handled by forklift. Short distance can be carried by hand.
2. The holding table must be flat and stable.
3. Connect 110V/220VAC power supply plug
PCB Singulation Advantages:
1.Easy maintanance and operation
2.Low bending stress,no vibration
3.specially for resin substrate PCB with pre-scored V groove
4.safety use
PCB Singulation Case:
|
