| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

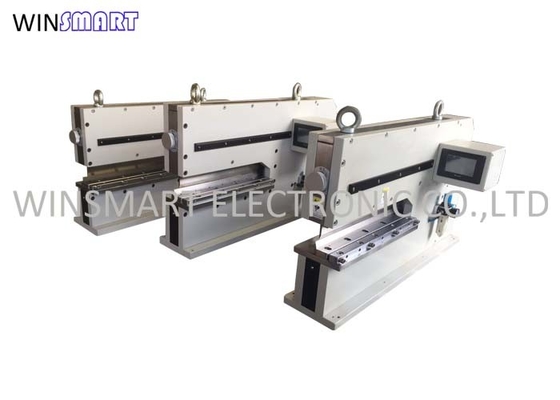

600mm Penumatic V-groove PCB Cutter Linear Blades PCB Separator
Penumatic V-groove PCB Cutter Description:
In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
Penumatic V-groove PCB Cutter Features:
1. Rigid design without vibration in operation.
2. The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.
3. Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.
4. Depaneling process without vibrations.
5. Easy maintenance and operation.
6. Pneumatic control placed in a separate unit for easier maintenance.
7. Customized blades and fixtures are available.
Penumatic V-groove PCB Cutter Specification:
| Model | SMTPD2 |
| Machine Dimension | 900x350x440mm |
| Max Cutting Length | 600mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Condition | New |
| Blade Material | High speed steel |
| Customized Blade | Available |
| Blade Re-sharpen | Yes |
| Power | 110/220V |
| Machine Weight | 250kgs |
Customized Blades:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
600mm Penumatic V-groove PCB Cutter Linear Blades PCB Separator
Penumatic V-groove PCB Cutter Description:
In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
Penumatic V-groove PCB Cutter Features:
1. Rigid design without vibration in operation.
2. The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.
3. Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.
4. Depaneling process without vibrations.
5. Easy maintenance and operation.
6. Pneumatic control placed in a separate unit for easier maintenance.
7. Customized blades and fixtures are available.
Penumatic V-groove PCB Cutter Specification:
| Model | SMTPD2 |
| Machine Dimension | 900x350x440mm |
| Max Cutting Length | 600mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Condition | New |
| Blade Material | High speed steel |
| Customized Blade | Available |
| Blade Re-sharpen | Yes |
| Power | 110/220V |
| Machine Weight | 250kgs |
Customized Blades:
