| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

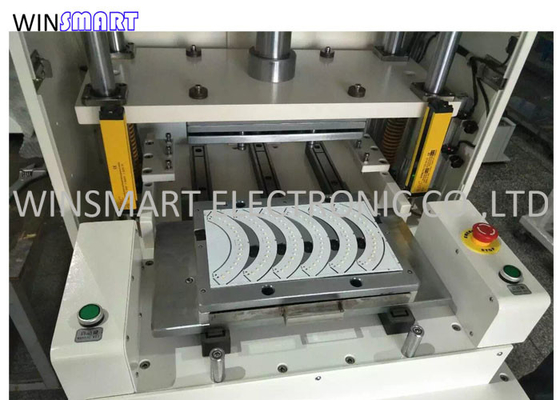

4.Automatic Cylinder Driven PCB Depaneling Punching Optional 8-30 Ton
PCB Depaneling Punching Overview:
It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market.
Its minimum cutting precision is ±0.05mm for special slim PCBs. Max working area is 460*320mm.
PCB Depaneling Punching Features:
1. Double switch two hands action start.
2. Equipped with the slideway of lower die in and out, and the lower die is automatically in and out, so the product is convenient and safe to take and place.
3. Emergency stop switch,identify problems and timely shutdown.
4. Security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
5. Safety air pressure setting function, alarm for exceeding limit. Automatic counting, over-limit shutdown.
7. The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
8. Suitable for very high volume boards.
PCB Depaneling Punching Characteristic:
1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3.Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould.
4. The equipment is universal. Various moulds can be replaced, and the change of moulds is convenient and fast.
PCB Depaneling Punching Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
PCB Depaneling Punching Application:
Apply for high volume routed FR4 and Aluminum PCB boards and FPC depaneling.
|
| Brand Name: | Winsamrt |
| Model Number: | SMTP300 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
4.Automatic Cylinder Driven PCB Depaneling Punching Optional 8-30 Ton
PCB Depaneling Punching Overview:
It is designed for PCB/FPC which is connected by points and stamp holes, has high efficiency precision stamping and punching effect. It is only guarantee slitting FPC, PCB deformation in current market.
Its minimum cutting precision is ±0.05mm for special slim PCBs. Max working area is 460*320mm.
PCB Depaneling Punching Features:
1. Double switch two hands action start.
2. Equipped with the slideway of lower die in and out, and the lower die is automatically in and out, so the product is convenient and safe to take and place.
3. Emergency stop switch,identify problems and timely shutdown.
4. Security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
5. Safety air pressure setting function, alarm for exceeding limit. Automatic counting, over-limit shutdown.
7. The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
8. Suitable for very high volume boards.
PCB Depaneling Punching Characteristic:
1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3.Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould.
4. The equipment is universal. Various moulds can be replaced, and the change of moulds is convenient and fast.
PCB Depaneling Punching Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
PCB Depaneling Punching Application:
Apply for high volume routed FR4 and Aluminum PCB boards and FPC depaneling.
