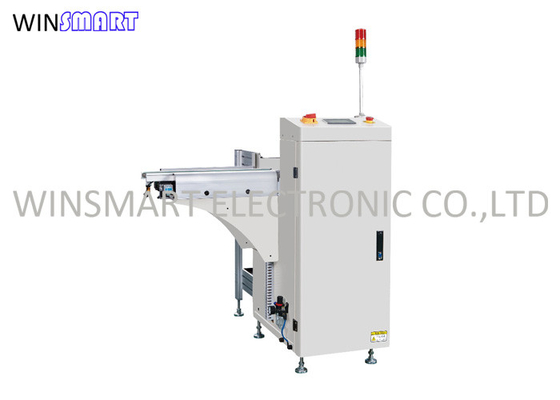

PCB Handling Equipment Automatic Right Angle PCB Unloader Machine
PCB Handling Equipment Description
Solid and stable design
Stable and reliable integrated control system
Light touch LED membrane switch or touch screen control
Top and bottom pneumatic clamps to secure magazine rack
Pressure regulated on pusher’s to prevent board damage
Machine always fault monitoring
Small machine footprint
SMEMA compatible
PCB Handling Equipment Overview:
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.
PCB Handling Equipment Specifications:
| Model No | SMTAU-250 | SMTAU-330 | SMTAU-390 | SMTAU-460 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(455x330) | (50x50)-(530x390) | (50x50)-(530x460) |
| Machine Size(mm) | 1180x1130x1200 | 1300x1420x1200 | 1500x1530x1200 | 1500x1630x1200 |
| Magazine Size(mm) | 355x320x560mm | 460x400x563 | 535x460x570 | 535x530x570 |
| Weight(kg) | 170 | 190 | 210 | 250 |
Technical Parameters:
| Function | PCB Loading Time | Magazine Change Time | Power Supply | Air Pressure |
| It is used for PCB loading | Approx 6 seconds | Approx 30 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | PCB Thickness | Magazine Number | Step Pitch Select |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | Up: 1; Down: 1 | 10mm, 20mm, 30mm, 40mm |
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTAU-330 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
PCB Handling Equipment Automatic Right Angle PCB Unloader Machine
PCB Handling Equipment Description
Solid and stable design
Stable and reliable integrated control system
Light touch LED membrane switch or touch screen control
Top and bottom pneumatic clamps to secure magazine rack
Pressure regulated on pusher’s to prevent board damage
Machine always fault monitoring
Small machine footprint
SMEMA compatible
PCB Handling Equipment Overview:
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.
PCB Handling Equipment Specifications:
| Model No | SMTAU-250 | SMTAU-330 | SMTAU-390 | SMTAU-460 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(455x330) | (50x50)-(530x390) | (50x50)-(530x460) |
| Machine Size(mm) | 1180x1130x1200 | 1300x1420x1200 | 1500x1530x1200 | 1500x1630x1200 |
| Magazine Size(mm) | 355x320x560mm | 460x400x563 | 535x460x570 | 535x530x570 |
| Weight(kg) | 170 | 190 | 210 | 250 |
Technical Parameters:
| Function | PCB Loading Time | Magazine Change Time | Power Supply | Air Pressure |
| It is used for PCB loading | Approx 6 seconds | Approx 30 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | PCB Thickness | Magazine Number | Step Pitch Select |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | Up: 1; Down: 1 | 10mm, 20mm, 30mm, 40mm |
