| Brand Name: | Winsmart |
| Model Number: | SMTS22 |
| MOQ: | 1 set |
| Price: | USD1-10000/Set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

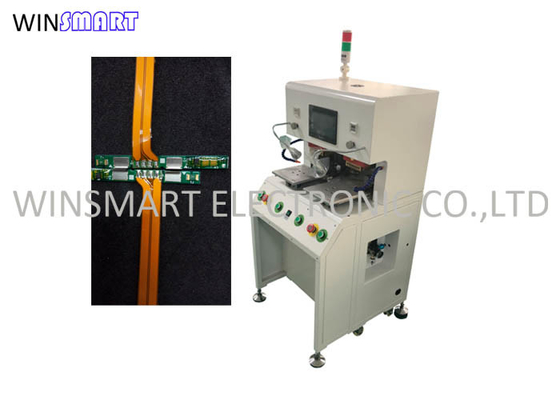

Flex Circuit Board Auto Soldering Machine for FPC to PCB Soldering
Flex Circuit Board Auto Soldering Machine Features:
According to different products, optional temperature for your choice. Unique material thermode head, ensure the average pressure.This machine has vacuum function, easier for adjustment and positioning, with digital pressure gauge, pressure range can be preset.
The machine is programmable curve Including pre-heating and reflow soldering temperature, suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding. Besides, equiped with precise PID control, phase angle replace pulse drive for less Libration, less noise, avoiding voltage fluctuate. Rotable dual fixtures with high working efficiency, touch screen input data, simplify the operation.
Real-time display temperature curve and temperature data for precise soldering.
Flex Circuit Board Auto Soldering Machine Parameters:
| Machine size | 660×620×1260mm |
| Working area | Max 150*150mm |
| Machine weight | 120Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
Flex Circuit Board Auto Soldering Machine Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB, ACF Soldering.
|
|
