| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |

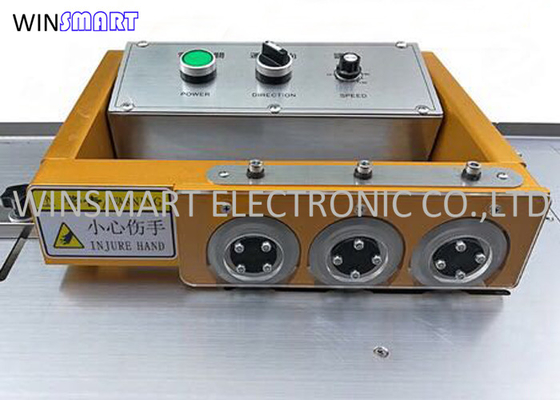

Automatic LED PCB Separator Manual Feeding LED PCB Depanelizer Machine
LED PCB Depanelizer Machine Application:
This machine is working for both FR4 and Aluminum printed circuit board depaneling.
LED PCB Depanelizer Machine Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Thickness | 0.4-3.5mm |
| Blade Quantity | 3 Pairs |
| Blade Material | High Speed Steel |
| Inspection Video | Provided |
| Testing Report | Provided |
| Certification | CE |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 44kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |
LED PCB Depanelizer Machine Features:
Separates panels up to 0.1", and no limit on cutting length requirement, workable for 1500mm LED boards. It can separate PCBs safely with parts as clost as 0.02" to score line, and allows max 70mm height components mounted on the boards, and operator will not mis-feed the board to avoid mistakes. We accept customized made circular blades for special applications.
LED PCB Depanelizer Machine Operation Brief:
1. It should be noted that the LED PCB depanelizer machine is only used for depaneling, and the operator should wear anti-static gloves according to the relevant regulations of the company.
2. During operation, pay attention to hand ornaments, hair and loose clothes, and avoid approaching the upper and lower blades to avoid safety problems.
3. When cutting the board, you must select two directions before stepping on the pedal switch, otherwise the cutter wheel will not work In case of abnormality, quickly press the emergency switch and release the pedal switch to avoid accidents. This safety instruction is applicable to SMT workshop. In order to safely and reasonably use the LED PCB cutting machine. Organize designated personnel to carry out operation and maintenance.
LED PCB Depanelizer Machine PCB Cases:
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTD3 |
| MOQ: | 1 set |
| Price: | USD1-10000/set |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T, Western Union |
Automatic LED PCB Separator Manual Feeding LED PCB Depanelizer Machine
LED PCB Depanelizer Machine Application:
This machine is working for both FR4 and Aluminum printed circuit board depaneling.
LED PCB Depanelizer Machine Specification:
| Model | SMTD3 |
| Machine Dimension | 400x400x330mm |
| Platform Dimension | 2400x300x200mm |
| Max Cutting Length | No limit |
| PCB Thickness | 0.4-3.5mm |
| Blade Quantity | 3 Pairs |
| Blade Material | High Speed Steel |
| Inspection Video | Provided |
| Testing Report | Provided |
| Certification | CE |
| PCB Material | FR4, MCPCB, Copper Boards |
| Cutting Speed | 0-500mm/s |
| PCB Thickness | 0.6-3mm |
| Power | 220/110V |
| Machine Weight | 44kgs |
| Wooden Case Dimension | 116x67x58cm |
| Gross Weight | 76kgs |
LED PCB Depanelizer Machine Features:
Separates panels up to 0.1", and no limit on cutting length requirement, workable for 1500mm LED boards. It can separate PCBs safely with parts as clost as 0.02" to score line, and allows max 70mm height components mounted on the boards, and operator will not mis-feed the board to avoid mistakes. We accept customized made circular blades for special applications.
LED PCB Depanelizer Machine Operation Brief:
1. It should be noted that the LED PCB depanelizer machine is only used for depaneling, and the operator should wear anti-static gloves according to the relevant regulations of the company.
2. During operation, pay attention to hand ornaments, hair and loose clothes, and avoid approaching the upper and lower blades to avoid safety problems.
3. When cutting the board, you must select two directions before stepping on the pedal switch, otherwise the cutter wheel will not work In case of abnormality, quickly press the emergency switch and release the pedal switch to avoid accidents. This safety instruction is applicable to SMT workshop. In order to safely and reasonably use the LED PCB cutting machine. Organize designated personnel to carry out operation and maintenance.
LED PCB Depanelizer Machine PCB Cases:
