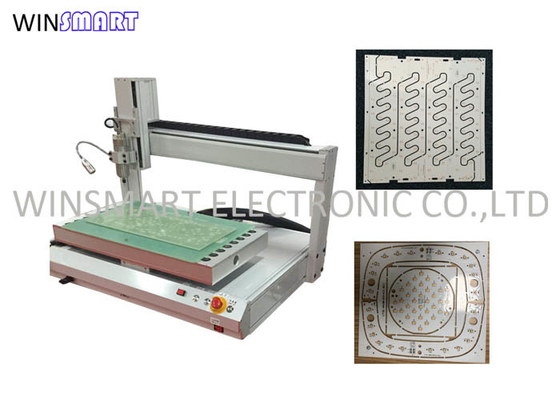

Benchtop PCB Router Machine Spindle Motor PCB Depaneling Machine
Benchtop PCB Router Machine Introduction:
This table type bench-top PCB router machine is used local brand spindle motor and vacuum cleaner. Milling cutter will be used for PCB cutting, and it is available for aluminum PCB boards. Different diameter cutters are available for different dimension milling joints. Customized made fixtures ensure smooth and precise cutting to protect components.
Benchtop PCB Router Machine Features:
1. Bench-top single table PCB router with speeds up to 100mm/s and positioning speeds of 500mm/s.
2. Teaching box for programming, easy to program for new products.
3. High quality spindle system enables the system to accelerate and decelerate quickly, reducing synchronization time and increasing productivity while maintaining high precision. This unit is cost-effective, working table dimension could be customized according to client's PCB boards.
4. Lower cutting stress.
5. Smooth cutting edge.
6. Easy operation when products are changed.
7. Fixtures are customized made for perfect depaneling.
Benchtop PCB Router Machine Specification:
| Model | SMTDR300 |
| Drive system motor | servo / stepper motor |
| Spindle | domestic / imported spindle |
| Cutting performance | 500mm / s |
| Drive system repeatability | ± 0.02mm |
| Cutting speed | Max 100mm / S depends on PCB material and cutting quality |
| Resolution | ±0.01mm |
| XYZ Stroke | 400 x 400 x 100mm(standard) |
| PCB positioning | special or standard fixture |
| Handling method | manual mode |
| Thickness of circuit board | 0.4mm-4mm |
| Spindle power | 0.5 kW |
| Spindle speed | 40,000 rpm |
| Machine size | 650x550x500mm |
| Weight | 75KG |
Benchtop PCB Router Machine Precautions:
1. After the work is completed, ensure to cut off the power supply, clean up the board cutting waste, and ensure the cleanness of the PCB router machine.
2. Pay attention to spindle motor and routing bits to ensure the effective implementation of depaneling.
3. Pay attention to the maintenance of the tools. When the tools are out of service for a long time, remove the tools and apply engine oil for maintenance.
4. Check the fastening of each screw of this PCB router machine every day.
|
|
